CBG-2SALF3GT-12IN-6O
ActiveLighthorse Technologies, Inc

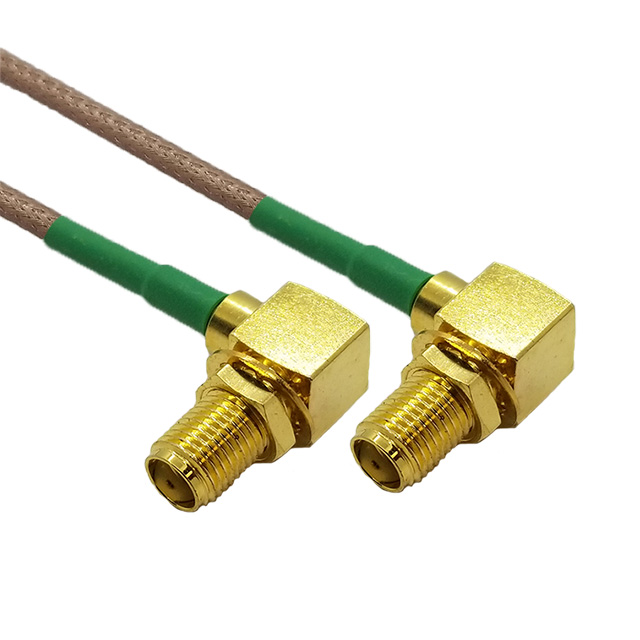

CBL ASSY SMA JACK TO JACK 12"
CBG-2SALF3GT-12IN-6O
ActiveLighthorse Technologies, Inc
CBL ASSY SMA JACK TO JACK 12"
Description
General part information
CBG-2SALF3GT-12IN-6O
Cable Assembly Coaxial SMA to SMA RG-178 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBG-2SALF3GT-12IN-6O |
|---|---|
| 1st Connector | SMA Jack, Right Angle |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack, Right Angle |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 178, RG |
| Color | Copper |
| Features | Shielded, Opposite Orientation |
| Frequency - Max | 3 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
