Description
General part information

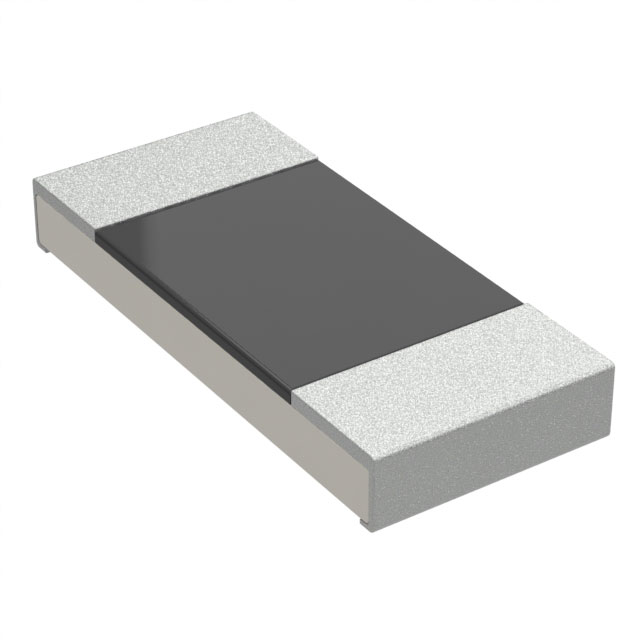

MCS1320R005FER
5 mOhms ±1% 0.75W, 3/4W Chip Resistor 0805 (2012 Metric) Current Sense, Flame Retardant Coating, Safety Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | MCS1320R005FER |
|---|---|
| Composition | Metal Element |
| Features | Flame Retardant Coating, Safety, Current Sense |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 750 mW |
| Power (Watts) Options | 3/4W |
| Resistance | 5 mOhms |
| Size / Dimension Length | 0.083 in |
| Size / Dimension Width | 0.053 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
