796375-1
ObsoleteTE Connectivity AMP Connectors

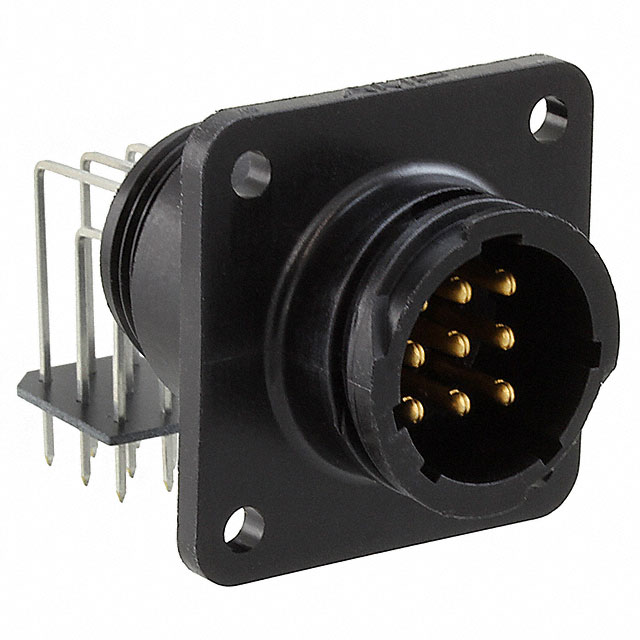

CONN RCPT MALE 9POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796375-1
ObsoleteTE Connectivity AMP Connectors
CONN RCPT MALE 9POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796375-1 | 796375 Series |
|---|---|---|
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold, PdNi +Gold |
| Contact Finish Thickness - Mating | 30 Áin | 3 - 30 µin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.076 - 0.76 µm |
| Contact Material | Brass | Brass |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 | 9 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | A | A |
| Primary Material | Plastic | Plastic |
| Shell Size - Insert | 13-9 | 13-9 |
| Shielding | - | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
796375 Series
CONN RCPT CPC 9POS R/A GOLD
| Part | Shell Size - Insert | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Primary Material | Material Flammability Rating | Orientation | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Shielding | Termination | Mounting Feature | Connector Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796375-3 | 13-9 | Gold | 105 ░C | -55 °C | 9 | Plastic | UL94 V-0 | A | Panel Mount, Right Angle, Through Hole | 3 µin | 0.076 µm | 250 VAC | Unshielded | Solder | Flange | Male Pins, Receptacle | |
TE Connectivity AMP Connectors 1-796375-2 | 13-9 | Gold, PdNi +Gold | 105 ░C | -55 °C | 9 | Plastic | UL94 V-0 | A | Panel Mount, Right Angle, Through Hole | 30 Áin | 0.76 Ám | 250 VAC | Solder | Flange | Male Pins, Receptacle | Brass | |
TE Connectivity AMP Connectors 796375-1 | 13-9 | Gold | 105 ░C | -55 °C | 9 | Plastic | UL94 V-0 | A | Panel Mount, Right Angle, Through Hole | 30 Áin | 0.76 Ám | 250 VAC | Solder | Flange | Male Pins, Receptacle | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 31.23 | |
| 16 | $ 25.78 | |||
| 32 | $ 23.96 | |||
| 80 | $ 22.64 | |||
| 240 | $ 22.14 | |||
Description
General part information
796375 Series
9 Position Circular Connector Receptacle, Male Pins Solder
