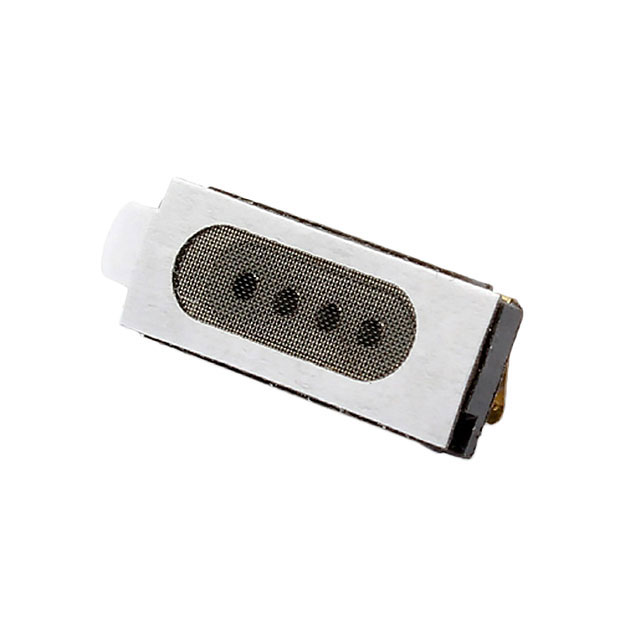

RC-1506S-1
ActiveSoberton Inc.
SPEAKR 32OHM 20MW TOP PORT 113DB
RC-1506S-1
ActiveSoberton Inc.
SPEAKR 32OHM 20MW TOP PORT 113DB
Description
General part information
RC-1506S-1
32 Ohms Receiver Speaker 20 mW 200 Hz ~ 3.4 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | RC-1506S-1 |
|---|---|
| Efficiency - dBA | 113 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range (Max) | 3.4 kHz |
| Frequency Range (Min) | 200 Hz |
| Height - Seated (Max) | 0.236 in |
| Impedance | 32 Ohms |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 30 mW |
| Power - Rated | 20 mW |
| Shape | Rectangular |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.236 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | Receiver |
