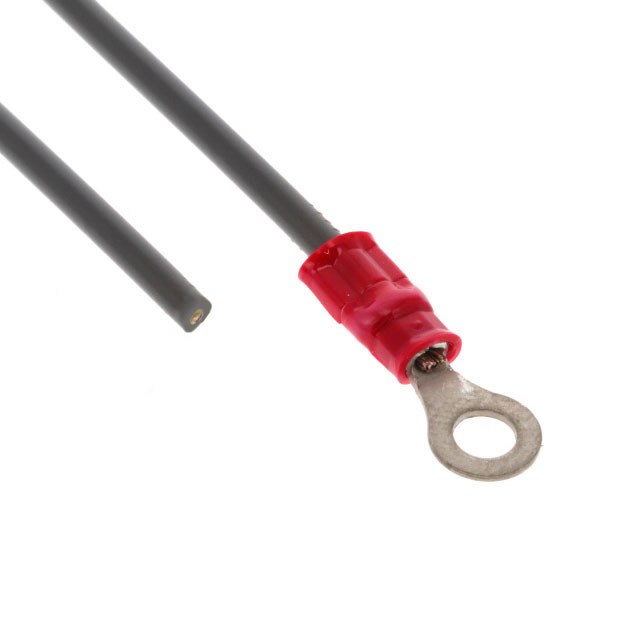

Specification	0190700014-18-S9

Color	Slate
Contact End	Ring Terminal (#8 stud) to Cable
Contact End (End 1)	Ring Terminal (#8 stud)
Contact End (End 2)	Cable
Contact Finish	Tin
Length	18 in
Number of Conductors	1
Number of Rows	1
Wire Gauge	18 AWG

019070 Series

...

Part	Contact Finish	Contact Material	Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Overall	Color	Thickness	Terminal Type	Width - Outer Edges	Insulation	Mounting Type	Features	Stud/Tab Size	Insulation Diameter	Material - Insulation	Number of Rows	Number of Conductors	Contact End	Contact End (End 1)	Contact End (End 2)	Length	Wire Gauge
Molex 0190700008	Electro-Tin	Copper	Crimp	18 AWG	22 AWG	0.709 in	Red	0.028 in	Circular	0.235 in	Insulated	Free Hanging (In-Line)	Serrated Termination	4 Stud	0.145 in	Poly-Vinyl Chloride PVC
Molex 0190700014-24-B9	Tin						Black										1	1	Ring Terminal (#8 stud) to Cable	Ring Terminal (#8 stud)	Cable	24 in	18 AWG
Molex 0190700014-06-N9-D	Tin						Brown										1	1	Ring Terminal (#8 stud) to Ring Terminal (#8 stud)			0.5 ft	18 AWG
Molex 0190700014-10-A9	Tin						Orange										1	1	Ring Terminal (#8 stud) to Cable	Ring Terminal (#8 stud)	Cable	10 in	18 AWG
Molex 0190700014-04-V9	Tin						Violet										1	1	Ring Terminal (#8 stud) to Cable	Ring Terminal (#8 stud)	Cable	4 in	18 AWG
Molex 0190700069	Tin	Copper	Crimp	14 AWG	16 AWG	0.785 in	Blue		Circular	0.26 in	Insulated	Free Hanging (In-Line)	Serrated Termination	6 Stud	0.175 in	Poly-Vinyl Chloride PVC
Molex 0190700071	Electro-Tin	Copper	Crimp	14 AWG	16 AWG	0.785 in	Blue	0.031 in	Circular	0.26 in	Insulated	Free Hanging (In-Line)	Serrated Termination	8 Stud	0.175 in	Poly-Vinyl Chloride PVC
Molex 0190700014-12-R9	Tin						Red										1	1	Ring Terminal (#8 stud) to Cable	Ring Terminal (#8 stud)	Cable	12 in	18 AWG
Molex 0190700014-05-B9-D	Tin						Black										1	1	Ring Terminal (#8 stud) to Ring Terminal (#8 stud)			5 in	18 AWG
Molex 0190700289	Electro-Tin	Copper	Crimp	18 AWG	22 AWG	0.866 in	Red	0.028 in	Circular	0.322 in	Insulated	Free Hanging (In-Line)		10 Stud	0.145 in	Poly-Vinyl Chloride PVC
