SCEP147L-R50
ActiveSignal Transformer
FIXED IND 500NH 24A 2.1 MOHM SMD
SCEP147L-R50
ActiveSignal Transformer
FIXED IND 500NH 24A 2.1 MOHM SMD
Description
General part information

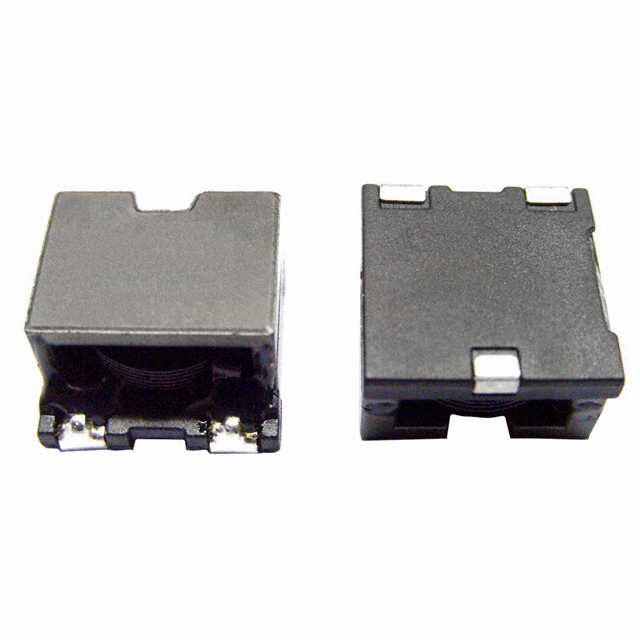

SCEP147L-R50
500 nH Shielded Inductor 24 A 2.1mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCEP147L-R50 |
|---|---|
| Current - Saturation (Isat) | 39.6 A |
| Current Rating | 24 A |
| DC Resistance (DCR) (Max) | 2.1 mOhm |
| Height - Seated (Max) | 0.319 in |
| Inductance | 500 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.587 in |
| Tolerance | 30 % |
