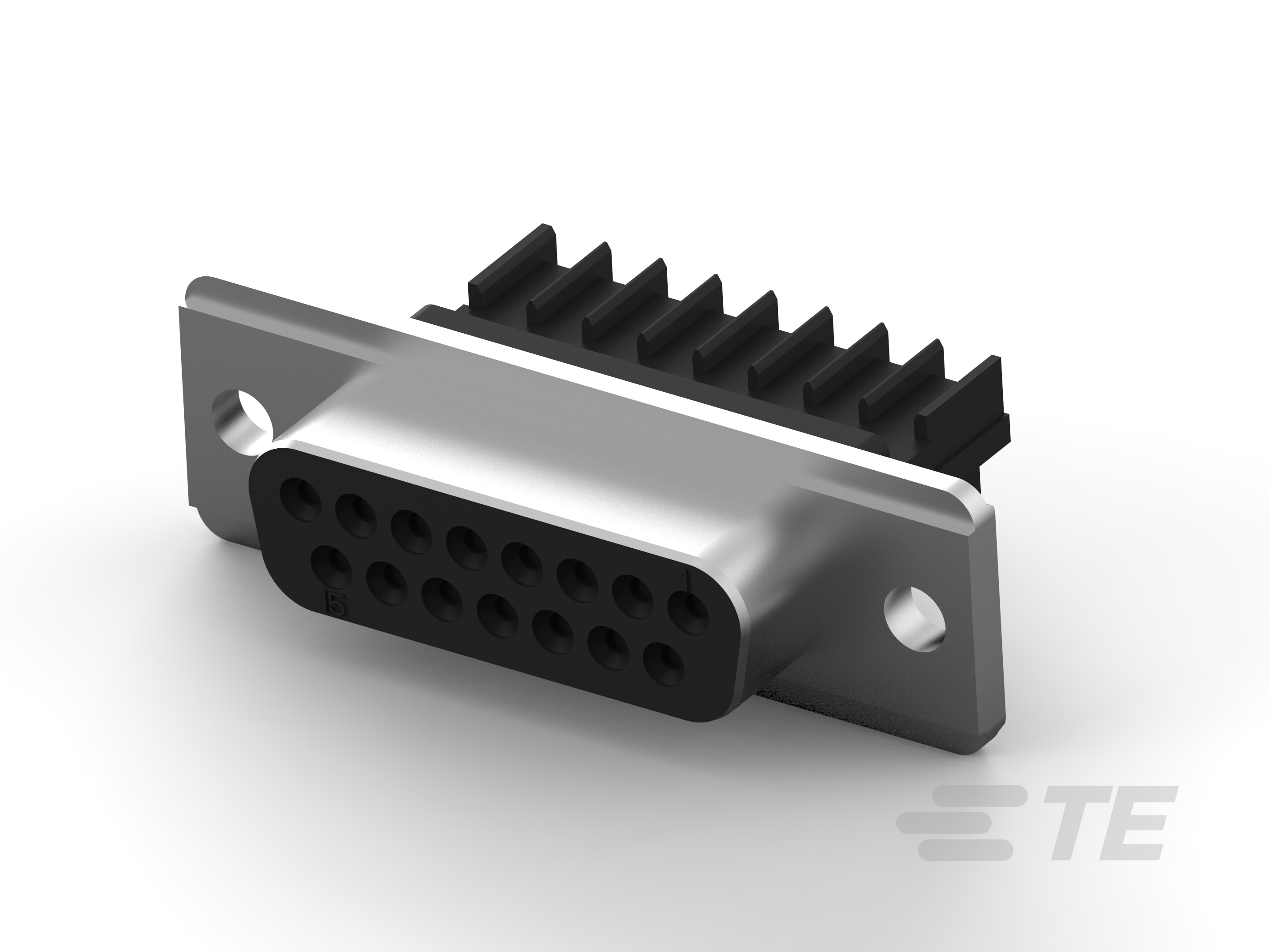

Specification	745205-7

Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Type	Signal
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Dielectric Material	Thermoplastic
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Size	2
Termination	IDC, Discrete Wire
Voltage Rating	250 V
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	22 AWG

AMPLIMITE HDE Series

Part	For Use With/Related Products	Tool Type	Shell Size	Connector Layout	Number of Rows	Flange Feature	Contact Type	Finish	Shell Material	Connector Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Mounting Type	Number of Positions	Current Rating	Current Rating	Termination	Connector Style	Contact Finish	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Voltage Rating	Dielectric Material	Contact Size	Contact Form	Type	Features	Contact Termination
TE Connectivity AMP Connectors 91232-1	D-Sub Terminals	Insertion/Extraction Tool
TE Connectivity AMP Connectors 1-749814-2			3	B DB	2	Cable Side Male Short Screw (4-40)	Signal	Tin Plated	Steel	Female Sockets Receptacle	0	Flash	Flash	Free Hanging (In-Line)	25	0 A	Varies by Wire Gauge	Discrete Wire IDC	D-Sub	Gold	UL94 V-0	-55 °C	105 °C	Black	Phosphor Bronze	26 AWG	22 AWG	250 V
TE Connectivity AMP Connectors 745211-7			3	B DB	2	Housing Shell (Unthreaded)	Signal			Male Pins Plug	0	Flash	Flash	Free Hanging (In-Line)	25	0 A	Varies by Wire Gauge	Discrete Wire IDC	D-Sub	Gold	UL94 V-0	-55 °C	105 °C	Black	Phosphor Bronze	26 AWG	22 AWG	250 V	Thermoplastic
TE Connectivity AMP Connectors 1-745269-1							Female Socket				30 µin									Gold					Phosphor Bronze	26 AWG	22 AWG			20	Stamped	Signal	Insulation Support	Crimp
TE Connectivity AMP Connectors 1-745493-4			2	A DA	2	Housing Shell (Unthreaded)	Signal	Tin Plated	Steel	Female Sockets Receptacle	30 µin			Free Hanging (In-Line)	15	0 A	Varies by Wire Gauge	Discrete Wire IDC	D-Sub	Gold	UL94 V-0
TE Connectivity AMP Connectors 1-745494-7			2	A DA	2	Housing Shell (Unthreaded)	Signal	Tin Plated	Steel	Male Pins Plug	30 µin			Free Hanging (In-Line)	15	0 A	Varies by Wire Gauge	Discrete Wire IDC	D-Sub	Gold	UL94 V-0												Grounding Indents
TE Connectivity AMP Connectors 91287-1	D-Sub IDC Connectors	Insertion Tool
TE Connectivity AMP Connectors 2-745495-0			3	B DB	2	Housing Shell (Unthreaded)	Signal	Tin Plated	Steel	Female Sockets Receptacle	1 µin			Free Hanging (In-Line)	25	0 A	Varies by Wire Gauge	Discrete Wire IDC	D-Sub	Gold	UL94 V-0	-55 °C	105 °C	Black	Phosphor Bronze	26 AWG	22 AWG	250 V	Glass Filled Thermoplastic
TE Connectivity AMP Connectors 1-745498-5			4	C DC	2	Housing Shell (Unthreaded)	Signal	Tin Plated	Steel	Male Pins Plug				Free Hanging (In-Line)	37 pos	0 A	Varies by Wire Gauge	Discrete Wire IDC	D-Sub	Gold	UL94 V-0												Grounding Indents
TE Connectivity AMP Connectors 1-745497-6			4	C DC	2	Housing Shell (Unthreaded)	Signal	Tin Plated	Steel	Female Sockets Receptacle	30 µin			Free Hanging (In-Line)	37 pos	0 A	Varies by Wire Gauge	Discrete Wire IDC	D-Sub	Gold	UL94 V-0
