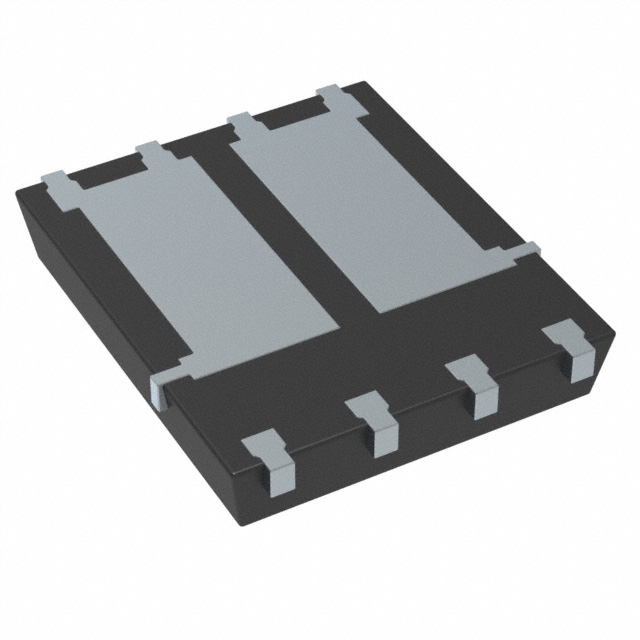

G60N04D52

Active

Goford Semiconductor

MOSFET 40V 35A 8DFN

Search across all available documentation for this part.

Active

Goford Semiconductor

MOSFET 40V 35A 8DFN

Technical Specifications

Parameters and characteristics for this part

Specification	G60N04D52

Current - Continuous Drain (Id) @ 25°C	35 A
Drain to Source Voltage (Vdss)	40 V
Gate Charge (Qg) (Max) @ Vgs	27 nC
Input Capacitance (Ciss) (Max) @ Vds	1998 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power - Max	20 W
Rds On (Max) @ Id, Vgs [Max]	9 mOhm
Supplier Device Package	8-DFN (4.9x5.75)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.5 V

MOSFET 40V 35A 8DFN

Part	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Mounting Type	Supplier Device Package	Technology	Rds On (Max) @ Id, Vgs [Max]
Goford Semiconductor G60N04D52	8-PowerTDFN	1998 pF	35 A	-55 °C	150 °C	20 W	27 nC	40 V	2.5 V	Surface Mount	8-DFN (4.9x5.75)	MOSFET (Metal Oxide)	9 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 40V 35A (Tc) 20W (Tc) Surface Mount 8-DFN (4.9x5.75)

Technical documentation and resources
