TU-1LF-004-RH2N
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
TU-1LF-004-RH2N
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
Description
General part information
TU-1LF-004-RH2N

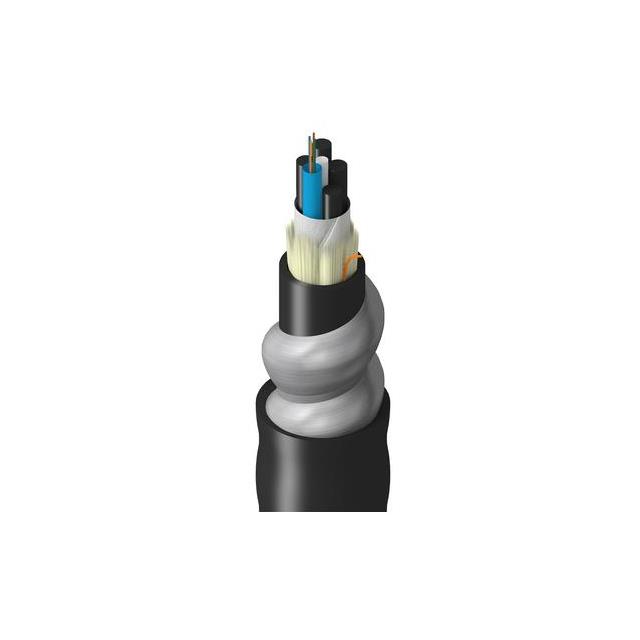

Fiber Optic Cable Black Multimode 125µm
Technical Specifications
Parameters and characteristics for this part
| Specification | TU-1LF-004-RH2N |
|---|---|
| Bend Radius | 194.31 mm |
| Cladding Diameter | 125 µm |
| Core Diameter | 62.5 µm |
| Jacket (Insulation) Diameter | 0.765 in |
| Jacket (Insulation) Material | Chlorinated Polyethylene (CPE) |
| Jacket Color | Black |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Standard |
| Tensile Strength | 81.6 kg |
| Type | Multimode |
