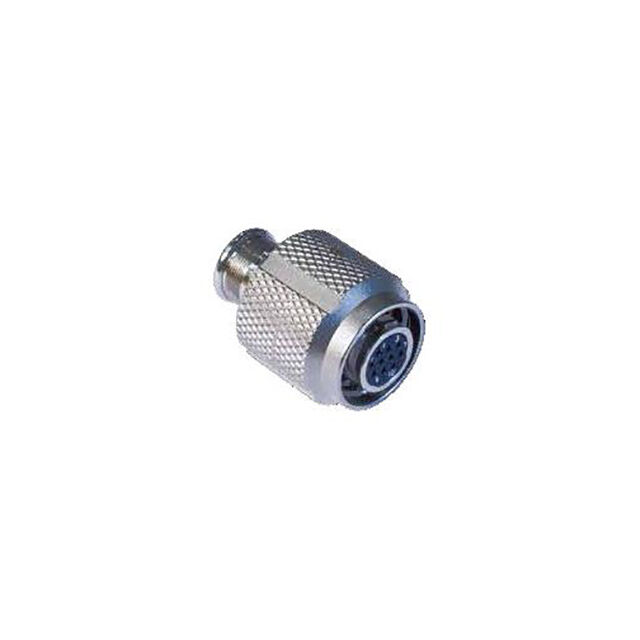

805-021-16MT12-26PC
ActiveGlenair
MIGHT MOUSE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
805-021-16MT12-26PC
ActiveGlenair
MIGHT MOUSE CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 805-021-16MT12-26PC | 805-021 Series |
|---|---|---|
| Applications | Aerospace, Aviation, Military | Aerospace, Aviation, Military |
| Backshell Material, Plating | Aluminum | Aluminum |
| Color | Silver | Silver, Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A | 5 A |
| Features | Coupling Nut | Coupling Nut |
| Ingress Protection | Environment Sealed | Environment Sealed |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 26 | 26 |
| Operating Temperature [Max] | 347 °F | 347 °F |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | C | C, N, D, B |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel, PTFE | Nickel, PTFE, Olive Drab Cadmium |
| Shell Material | Aluminum | Aluminum, Stainless Steel |
| Shell Size - Insert [Max] | 26 | 26 |
| Shell Size - Insert [Min] | 12 | 12 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2695.14 | |
| 4 | $ 2036.88 | |||
| 10 | $ 1273.02 | |||
| 20 | $ 974.98 | |||
| 50 | $ 745.20 | |||
| Bulk | 1 | $ 1983.41 | ||
805-021 Series
MIGHT MOUSE CONNECTOR
| Part | Number of Positions | Contact Finish - Mating | Contact Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Features | Applications | Ingress Protection | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Color | Shell Finish | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Connector Type | Termination | Current Rating (Amps) | Primary Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair 805-021-16MT12-26PC | 26 | Gold | Copper Alloy | 12 | 26 | Coupling Nut | Aerospace, Aviation, Military | Environment Sealed | C | -65 ░C | 347 °F | Aluminum | Silver | Nickel, PTFE | Shielded | 1.27 µm | 50 µin | Aluminum | Male Pins, Plug | Crimp | 5 A | Metal | Free Hanging (In-Line) |
Glenair 805-021-16MT12-26PA | 26 | Gold | Copper Alloy | 12 | 26 | Coupling Nut | Military | Environment Sealed | N | -65 ░C | 347 °F | Silver | Nickel | Shielded | 1.27 µm | 50 µin | Aluminum | Male Pins, Plug | Crimp | 5 A | Metal | Free Hanging (In-Line) | |
Glenair 805-021-16MT12-26PD | 26 | Gold | Copper Alloy | 12 | 26 | Coupling Nut | Military | Environment Sealed | D | -65 ░C | 347 °F | Silver | Nickel | Shielded | 1.27 µm | 50 µin | Aluminum | Male Pins, Plug | Crimp | 5 A | Metal | Free Hanging (In-Line) | |
Glenair 805-021-16MT12-26PB | 26 | Gold | Copper Alloy | 12 | 26 | Coupling Nut | Military | Environment Sealed | B | -65 ░C | 347 °F | Silver | Nickel | Shielded | 1.27 µm | 50 µin | Aluminum | Male Pins, Plug | Crimp | 5 A | Metal | Free Hanging (In-Line) | |
Glenair 805-021-16ZW12-26PA | 26 | Gold | Copper Alloy | 12 | 26 | Coupling Nut | Military | Environment Sealed | N | -65 ░C | 347 °F | Olive Drab | Olive Drab Cadmium | Shielded | 1.27 µm | 50 µin | Stainless Steel | Male Pins, Plug | Crimp | 5 A | Metal | Free Hanging (In-Line) |
Description
General part information
805-021 Series
26 Position Circular Connector Plug, Male Pins
