M12,REAR MOUNTING,FEMALE,D,4P,0.2M WIRE-T4171110504-001

T4171110504-001

Active
TE Connectivity AMP Connectors

SENSOR CABLE, D CODED, M12 SENSOR STRAIGHT RECEPTACLE, FREE END, 4 POSITIONS, 200 MM, 7.87 "

Find alt
M12,REAR MOUNTING,FEMALE,D,4P,0.2M WIRE-T4171110504-001

T4171110504-001

Active
TE Connectivity AMP Connectors

SENSOR CABLE, D CODED, M12 SENSOR STRAIGHT RECEPTACLE, FREE END, 4 POSITIONS, 200 MM, 7.87 "

Find alt

Description

General part information

T41711 Series

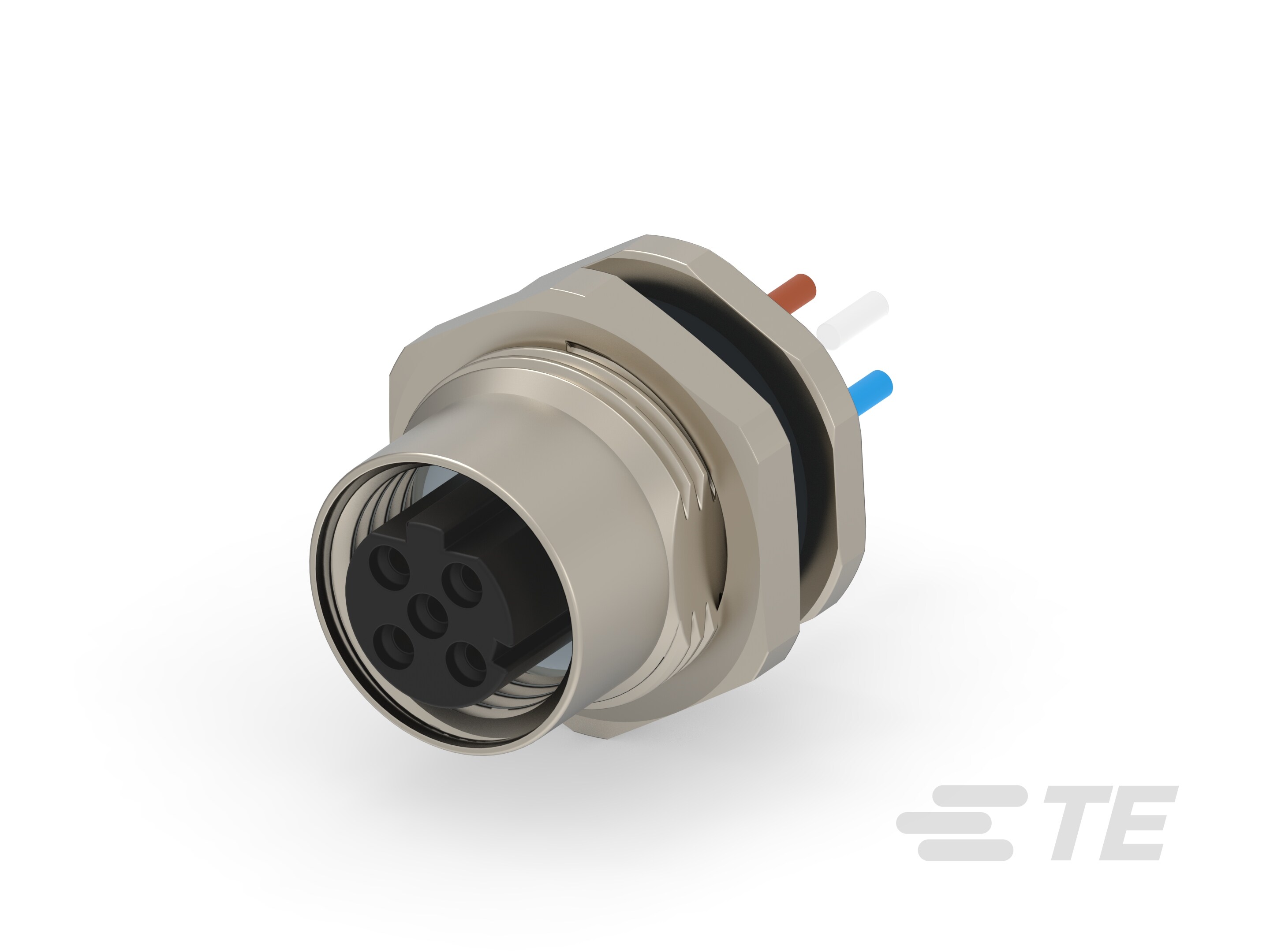

T4171110504-001 is a T417 series M12 panel mount connector with wire. This M12 connector used in applications where a compact reliable connection system with environmental protection is required.

Technical Specifications

Parameters and characteristics for this part

SpecificationT4171110504-001
1st Connector GenderFemale Sockets
1st Connector Mounting TypePanel Mount
1st Connector Number of Positions5 positions
1st Connector Number of Positions Loaded4 positions
1st Connector OrientationD
1st Connector Shell Size - InsertM12
1st Connector TypeReceptacle
2nd Connector TypeWire Leads
Assembly ConfigurationStandard
Cable MaterialPolyvinyl Chloride (PVC)
Cable TypeIndividual
ColorMultiple
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Length0.66 ft
UsageIndustrial Environments
