222MWR152KB
ActiveCornell Dubilier Knowles

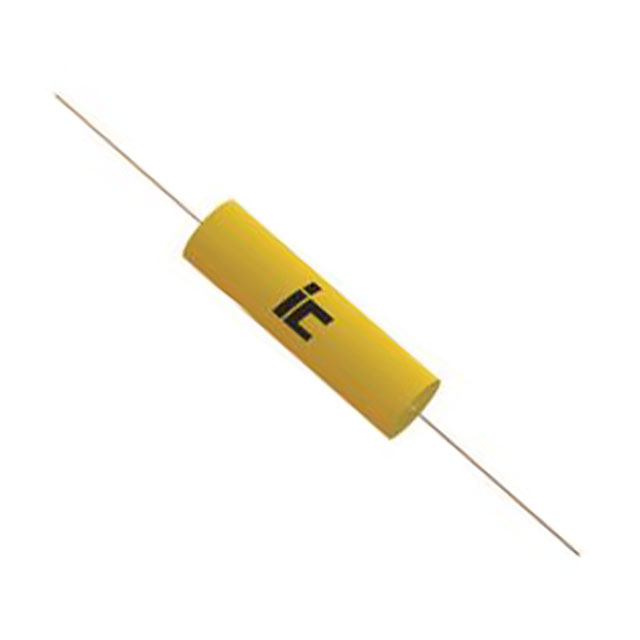

CAP FILM 2200PF 1.5KVDC AXIAL
222MWR152KB
ActiveCornell Dubilier Knowles
CAP FILM 2200PF 1.5KVDC AXIAL
Description
General part information
222MWR152KB
2200 pF Film Capacitor 300V 1500V (1.5kV) Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 222MWR152KB |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 pF |
| Dielectric Material | Polyester, Metallized |
| Features | Low ESR |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.236 in |
| Size / Dimension Length | 0.571 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 1500 V |
