MLG1608B4N7ST000
ObsoleteTDK Corporation
FIXED IND 4.7NH 600MA 150MOHM SM
MLG1608B4N7ST000
ObsoleteTDK Corporation
FIXED IND 4.7NH 600MA 150MOHM SM
Description
General part information
MLG1608B4N7ST000

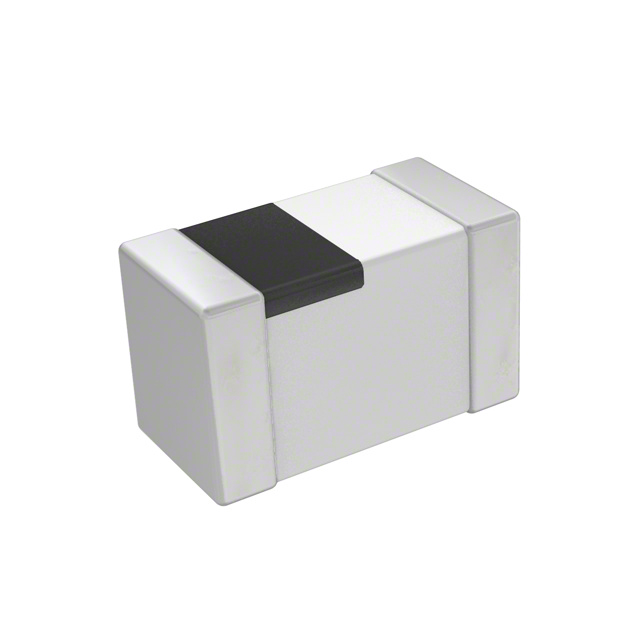

4.7 nH Unshielded Multilayer Inductor 600 mA 150mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MLG1608B4N7ST000 |
|---|---|
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 150 mOhm |
| Frequency - Self Resonant | 5 GHz |
| Height - Seated (Max) | 0.037 in |
| Inductance | 4.7 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic, Non-Magnetic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 (1608 Metric) |
| Q | 10 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 0.3 nH |
| Type | Multilayer |
