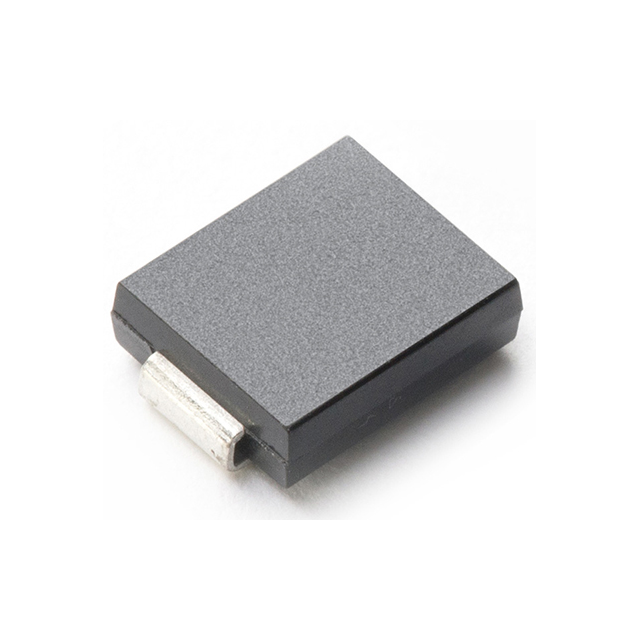

MART100KP132A
ActiveMDE Semiconductor Inc
TVS DIODE UP 132VRWM 256.0VC
MART100KP132A
ActiveMDE Semiconductor Inc
TVS DIODE UP 132VRWM 256.0VC
Description
General part information
MART100KP132A
256V Clamp 378A Ipp Tvs Diode Through Hole P600
Technical Specifications
Parameters and characteristics for this part
| Specification | MART100KP132A |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse | 378 A |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial, P600 |
| Package Name | P600 |
| Power - Peak Pulse | 100000 W |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 147.4 V |
| Voltage - Clamping (Max) | 256 V |
| Voltage - Reverse Standoff (Typ) | 132 V |
