0800420:0000

Active

Phoenix Contact

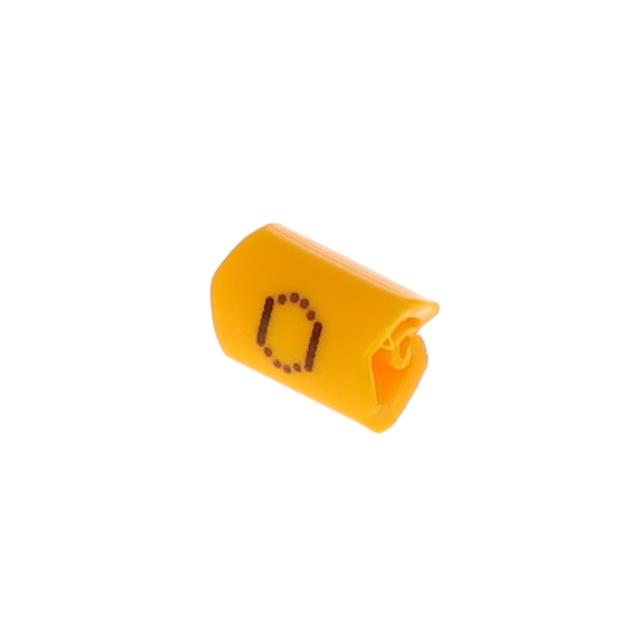

WIRE MARKER SLIP-ON YELLOW

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE MARKER SLIP-ON YELLOW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Marker, Slip-On Yellow Ethylene Vinyl Acetate Copolymer (EVA)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0800420:0000	0800420 Series

Cable Diameter [diameter]	2.5 mm, 1.4 mm	1.4 - 2.5 mm
Cable Diameter [diameter]	0.098 in, 0.055 in	0.055 - 0.098 in
Color	Yellow	Yellow
Legend	0	0 - 6
Legend	-	9, 4, 2, 7
Material	Ethylene Vinyl Acetate Copolymer (EVA)	Ethylene Vinyl Acetate Copolymer (EVA)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-45 °C	-45 °C
Type	Wire Marker, Slip-On	Wire Marker, Slip-On

WIRE MARKER SLIP-ON YELLOW

Part	Cable Diameter [diameter]	Cable Diameter [diameter]	Type	Legend	Operating Temperature [Min]	Operating Temperature [Max]	Material	Color	Legend
Phoenix Contact 0800420:0005	1.4 mm, 2.5 mm	0.055 in, 0.098 in	Wire Marker, Slip-On	5	-45 °C	70 °C	Ethylene Vinyl Acetate Copolymer (EVA)	Yellow
Phoenix Contact 0800420:0009	1.4 mm, 2.5 mm	0.055 in, 0.098 in	Wire Marker, Slip-On		-45 °C	70 °C	Ethylene Vinyl Acetate Copolymer (EVA)	Yellow	9
Phoenix Contact 0800420:0000	1.4 mm, 2.5 mm	0.055 in, 0.098 in	Wire Marker, Slip-On	0	-45 °C	70 °C	Ethylene Vinyl Acetate Copolymer (EVA)	Yellow
Phoenix Contact 0800420:0006	1.4 mm, 2.5 mm	0.055 in, 0.098 in	Wire Marker, Slip-On	6	-45 °C	70 °C	Ethylene Vinyl Acetate Copolymer (EVA)	Yellow
Phoenix Contact 0800420:0004	1.4 mm, 2.5 mm	0.055 in, 0.098 in	Wire Marker, Slip-On		-45 °C	70 °C	Ethylene Vinyl Acetate Copolymer (EVA)	Yellow	4
Phoenix Contact 0800420:0002	1.4 mm, 2.5 mm	0.055 in, 0.098 in	Wire Marker, Slip-On		-45 °C	70 °C	Ethylene Vinyl Acetate Copolymer (EVA)	Yellow	2
Phoenix Contact 0800420:0007	1.4 mm, 2.5 mm	0.055 in, 0.098 in	Wire Marker, Slip-On		-45 °C	70 °C	Ethylene Vinyl Acetate Copolymer (EVA)	Yellow	7
