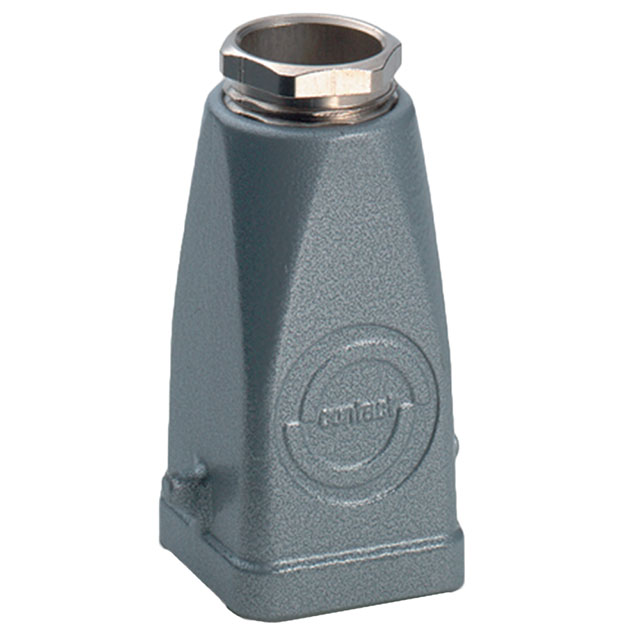

105121NP

Active

LAPP

CONN HOOD HA3/4 TE NPT1/2"

Search across all available documentation for this part.

Active

LAPP

CONN HOOD HA3/4 TE NPT1/2"

Technical Specifications

Parameters and characteristics for this part

Specification	105121NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Zinc Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HA3/4
Size / Dimension [x]	26.8 mm
Size / Dimension [x]	1.055 "
Size / Dimension [y]	1.055 "
Size / Dimension [y]	26.8 mm
Size / Dimension [z]	1.969 in
Size / Dimension [z]	50 mm
Style	Top Entry
Thread Size	NPT-1/2

CONN HOOD HA3/4 TE NPT1/2"

Part	Connector Type	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Housing Material	Ingress Protection	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size	Thread Size	Housing Color	Style
LAPP 105121NP	Hood	Locking Clip (1) on Base Bottom	1.055 "	1.969 in	26.8 mm	26.8 mm	1.055 "	50 mm	Zinc Die Cast	IP65 - Dust Tight, Water Resistant	Powder Coated	125 °C	-40 °C	HA3/4	NPT-1/2	Gray	Top Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry NPT-1/2 HA3/4 IP65 - Dust Tight, Water Resistant
