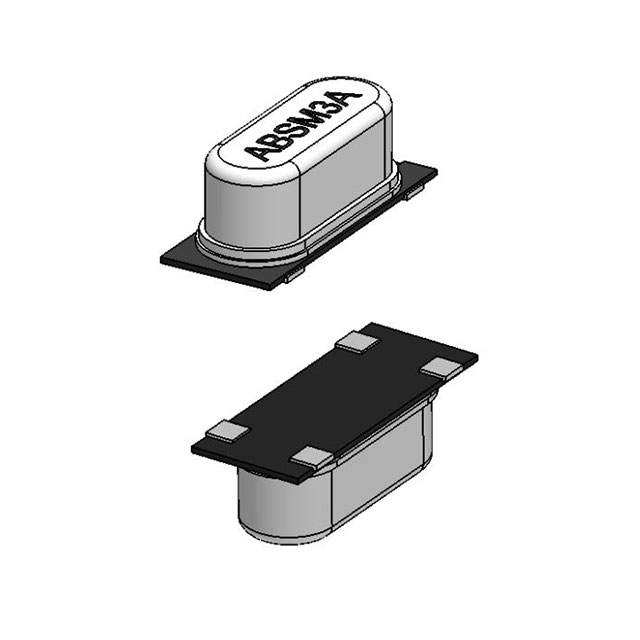

ABSM33A-3.6864MHZ-B4Y-T
ActiveAbracon LLC
CRYSTAL 3.6864MHZ 18PF SMD
ABSM33A-3.6864MHZ-B4Y-T
ActiveAbracon LLC
CRYSTAL 3.6864MHZ 18PF SMD
Description
General part information
ABSM33A-3.6864MHZ-B4Y-T
3.6864 MHz ±30ppm Crystal 18pF 150 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | ABSM33A-3.6864MHZ-B4Y-T |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohm |
| Frequency | 3.6864 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.15 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | HC-49/US |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.195 in |
| Type | MHz Crystal |
