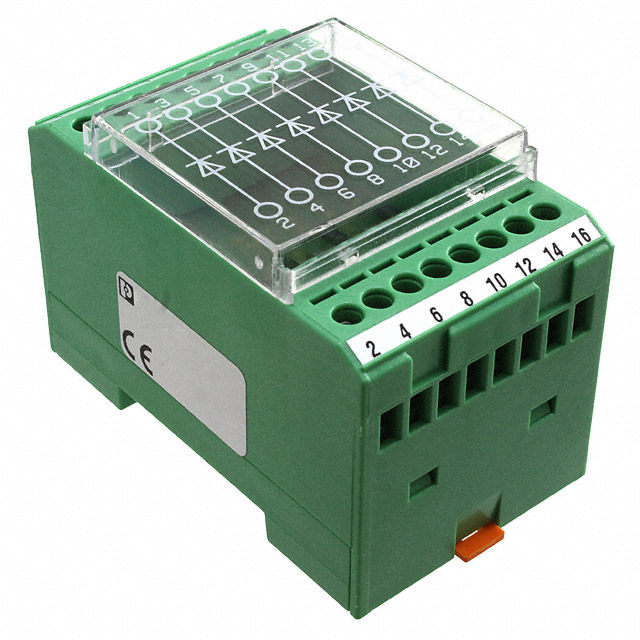

DIODE BLOCK, 8 DIODE, 0.7A, SINGLE WIRED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE BLOCK, 8 DIODE, 0.7A, SINGLE WIRED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2950103	29501 Series

Current - Average Rectified (Io) (per Diode)	700 mA	700 mA
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Configuration	8 Independent	14 Common Anode, 14 Common Cathode, 8 Independent, 7 Pair Common Cathode
Mounting Type	DIN Rail	DIN Rail, DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C	50 °C
Operating Temperature - Junction [Min]	-20 °C	-20 °C
Package / Case	Housed Axial	Housed Axial, Module
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	Module	Module
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V	1300 V

DIODE BLOCK, 14DIODE, 0.7A, COMMON ANODE ROHS COMPLIANT: YES

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Speed	Speed	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Technology	Current - Average Rectified (Io) (per Diode)
Phoenix Contact 2950129	DIN Rail	1300 V	14 Common Anode	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Housed Axial	Standard	700 mA
Phoenix Contact 2950116	DIN Rail	1300 V	14 Common Cathode	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Housed Axial	Standard	700 mA
Phoenix Contact 2950103	DIN Rail	1300 V	8 Independent	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Housed Axial	Standard	700 mA
Phoenix Contact 2950132	DIN Rail/Channel	1300 V	7 Pair Common Cathode	Standard Recovery >500ns	200 mA	5 µA	Module	50 °C	-20 °C	Module	Standard	700 mA
