Description
General part information
0033.4502

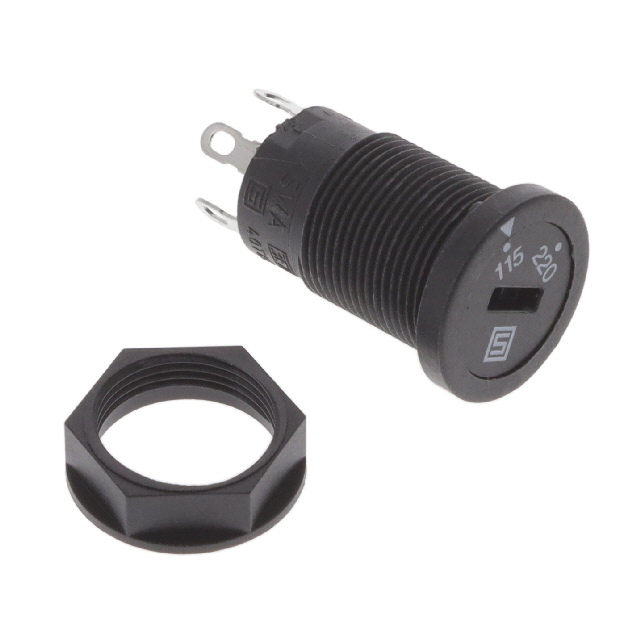

Selector Switch 2 Position Series, Parallel Connections 6.3A (AC) 250 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0033.4502 |
|---|---|
| Approval Agency | SEMKO, CSA, UR |
| Circuit | Parallel Connections, Series |
| Current Rating | 6.3 A |
| Depth Behind Flange | 23.5 mm |
| Features | Marking: 115-220 |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 300 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 12.7 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Line Voltage Selector |
| Voltage Rating - AC | 250 V |
