Specification	0190440146

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall	1.115 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.375 in
Stud/Tab Size	3 Stud, 8 Stud
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges	0.534 in
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

019044 Series

Part	Features	Mounting Type	Stud/Tab Size	Contact Finish	Width - Outer Edges	Terminal Type	Thickness	Contact Material	Insulation	Termination	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Stud/Tab Size (Type)
Molex 0190440138	Heavy Duty	Free Hanging (In-Line)	0.5 Stud	Electro-Tin	0.76 in	Circular	0.05 in	Copper	Non-Insulated	Crimp	1.28 in	16 AWG	14 AWG

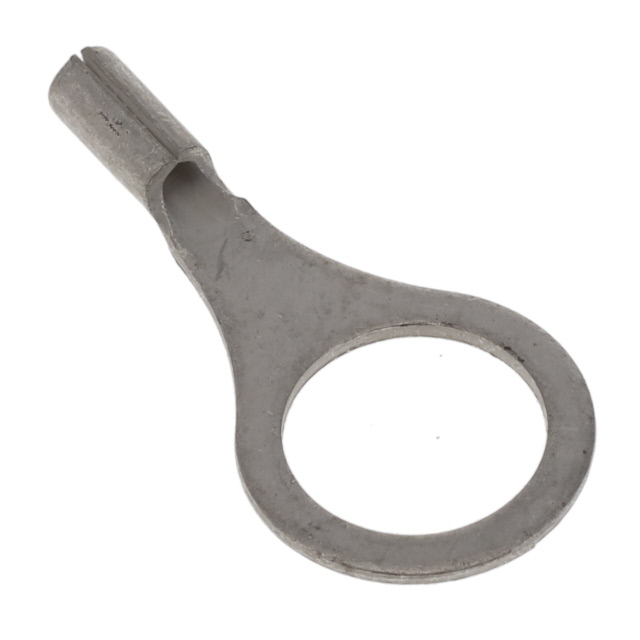

Molex 0190440081		Free Hanging (In-Line)	0.375 in	Electro-Tin	0.534 in	Circular	0.031 in	Copper	Non-Insulated	Crimp	1.113 in	22 AWG	18 AWG	3 Stud 8 Stud
Molex 0190440158		Free Hanging (In-Line)	0.25 Stud	Electro-Tin	0.467 in	Circular		Copper	Non-Insulated	Crimp	0.916 in	16 AWG	14 AWG
Molex 0190440187	Heavy Duty	Free Hanging (In-Line)	0.3125 in	Electro-Tin	0.598 in	Circular	0.05 in	Copper	Non-Insulated	Crimp	1.056 in	16 AWG	14 AWG	16 Stud 5 Stud	Stud
Molex 0190440066		Free Hanging (In-Line)	6 Stud	Electro-Tin	0.225 in	Circular	0.028 in	Copper	Non-Insulated	Crimp	0.563 in	22 AWG	18 AWG
Molex 0190440083		Free Hanging (In-Line)	4 Stud	Electro-Tin	0.256 in	Circular	0.028 in	Copper	Non-Insulated	Crimp	0.661 in	22 AWG	18 AWG
Molex 0190440326		Free Hanging (In-Line)	10 Stud	Electro-Tin	0.312 in	Circular		Copper	Non-Insulated	Crimp	0.73 in	16 AWG	14 AWG
Molex 0190440140	Heavy Duty	Free Hanging (In-Line)	0.375 in	Electro-Tin	0.76 in	Circular	0.05 in	Copper	Non-Insulated	Crimp	1.28 in	16 AWG	14 AWG	3 Stud 8 Stud

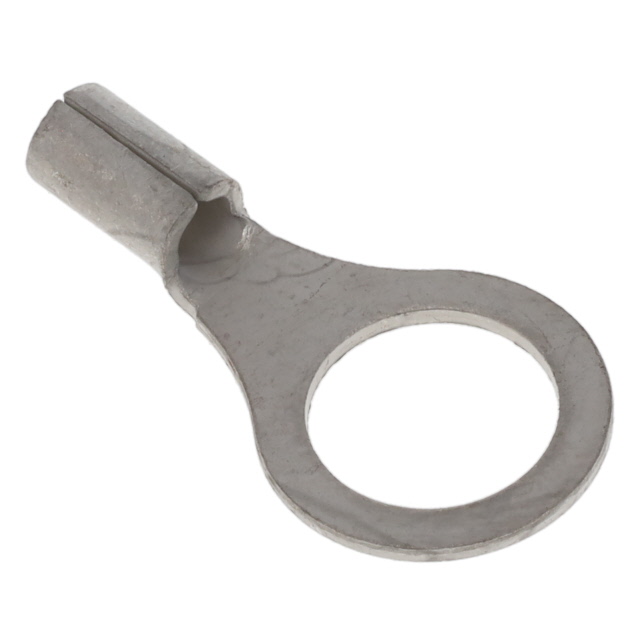

Molex 0190440160		Free Hanging (In-Line)	0.3125 in	Electro-Tin	0.467 in	Circular		Copper	Non-Insulated	Crimp	0.916 in	16 AWG	14 AWG	16 Stud 5 Stud	Stud
Molex 0190440031		Free Hanging (In-Line)	8 Stud	Electro-Tin	0.312 in	Circular		Copper	Non-Insulated	Crimp	0.73 in	16 AWG	14 AWG
