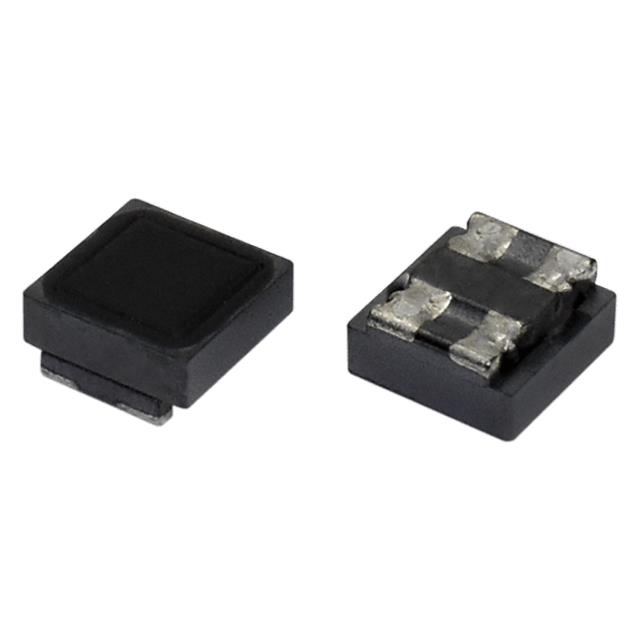

SPDL485025-1400-2P-T
ActiveSignal Transformer
CMC 1.5A 2LN 1.4 KOHM SMD
SPDL485025-1400-2P-T
ActiveSignal Transformer
CMC 1.5A 2LN 1.4 KOHM SMD
Description
General part information
SPDL485025-1400-2P-T
2 Line Common Mode Choke Surface Mount 1.4 kOhms @ 100 MHz 1.5A DCR 40mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | SPDL485025-1400-2P-T |
|---|---|
| Current Rating (Max) | 1.5 A |
| DC Resistance (DCR) (Max) | 40 mOhm |
| DC Resistance (DCR) (Typ) | 40 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.098 in |
| Impedance | 1400 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.189 in |
| Voltage Rating - DC | 50 V |
