A20L0C-P06MCC0-420S
ActiveODU

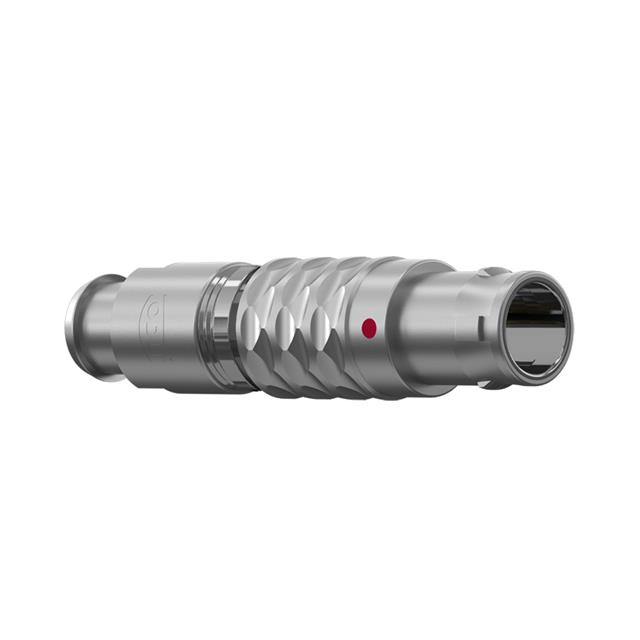

ODU MINI-SNAP BREAK-AWAY PLUG, S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A20L0C-P06MCC0-420S
ActiveODU
ODU MINI-SNAP BREAK-AWAY PLUG, S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A20L0C-P06MCC0-420S | A20L0C-P Series |
|---|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Brass, Chrome over Nickel | Brass, Chrome over Nickel |
| Cable Opening | - | 0.157 - 0.197 in |
| Cable Opening | - | 4 - 5 mm |
| Cable Opening | - | 0.205 - 0.22 in |
| Cable Opening | - | 5.2 - 5.6 mm |
| Cable Opening | - | 0.059 - 0.087 in |
| Cable Opening | - | 1.5 - 2.2 mm |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 4 A | 4 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Strain Relief, Backshell | Strain Relief, Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 2 - 10 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | 0 | 0 |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome over Nickel | Chrome over Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 0 | 0 |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Voltage Rating | 300 VDC | 200 - 500 V |
A20L0C-P Series
ODU MINI-SNAP PLUG, STY 2, SZ 0,
| Part | Contact Finish - Mating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Backshell Material, Plating | Fastening Type | Shell Material | Voltage Rating | Current Rating (Amps) | Ingress Protection | Contact Material | Primary Material | Shell Size - Insert | Shielding | Color | Applications | Connector Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Features | Orientation | Shell Finish | Insert Material | Cable Opening [custom] | Cable Opening [custom] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 0.197 in | 5 mm | 0.22 in | 5.6 mm | Brass, Chrome over Nickel | Push-Pull | Brass | 200 V | 4 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 9 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||
Gold | Brass, Chrome over Nickel | Push-Pull | Brass | 200 V | 4 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 10 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | 0.059 in, 0.087 in | 1.5 mm, 2.2 mm | ||||||
Gold | 0.157 in | 4 mm | 0.205 in | 5.2 mm | Brass, Chrome over Nickel | Push-Pull | Brass | 200 V | 4 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 10 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||
Gold | Brass, Chrome over Nickel | Push-Pull | Brass | 200 V | 4 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 9 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||||||
Gold | 0.157 in | 4 mm | 0.205 in | 5.2 mm | Brass, Chrome over Nickel | Push-Pull | Brass | 300 VDC | 7.5 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 4 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||
Gold | Brass, Chrome over Nickel | Push-Pull | Brass | 300 VDC | 4 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 6 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||||||
Gold | 0.157 in | 4 mm | 0.205 in | 5.2 mm | Brass, Chrome over Nickel | Push-Pull | Brass | 300 VDC | 4 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 6 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||
Gold | Brass, Chrome over Nickel | Push-Pull | Brass | 300 VDC | 4 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 7 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||||||
Gold | Brass, Chrome over Nickel | Push-Pull | Brass | 500 V | 7.5 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | 2 | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) | ||||||||
Gold | Brass, Chrome over Nickel | Push-Pull | Brass | 200 V | 7.5 A | IP50 | Brass | Metal | 0 | Unshielded | Silver | Industrial, Medical, Military, Testing Equipment & Measurement | Male Pins, Plug | Free Hanging (In-Line) | -40 °C | 120 °C | Backshell, Strain Relief | 0 | Chrome over Nickel | Polyetheretherketone (PEEK) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.54 | |
Description
General part information
A20L0C-P Series
6 Position Circular Connector Plug, Male Pins Solder Cup
