3128
ActiveHeyco Products Corporation
SBT 1093-15 BLACK
3128
ActiveHeyco Products Corporation
SBT 1093-15 BLACK
Description
General part information
3128

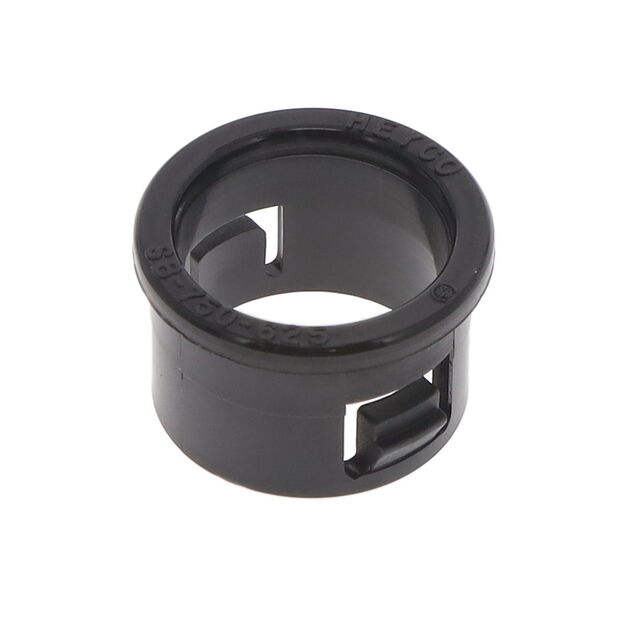

Circular - 1.093" ~ 1.125" (27.76mm ~ 28.58mm) Bushing 0.940" (23.88mm) Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 3128 |
|---|---|
| Buring, Grommet Type | Bushing |
| Color | Black |
| Diameter - Inside | 0.94 in |
| For Use With/Related Products | Wires, Cable |
| Material | Nylon 6, 6, Polyamide (PA66) |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Diameter (Maximum) | 1.125 " |
| Panel Cutout Diameter (Minimum) | 1.093 " |
| Panel Cutout Shape | Circular |
| Panel Thickness | 0.25 in |
