Description
General part information

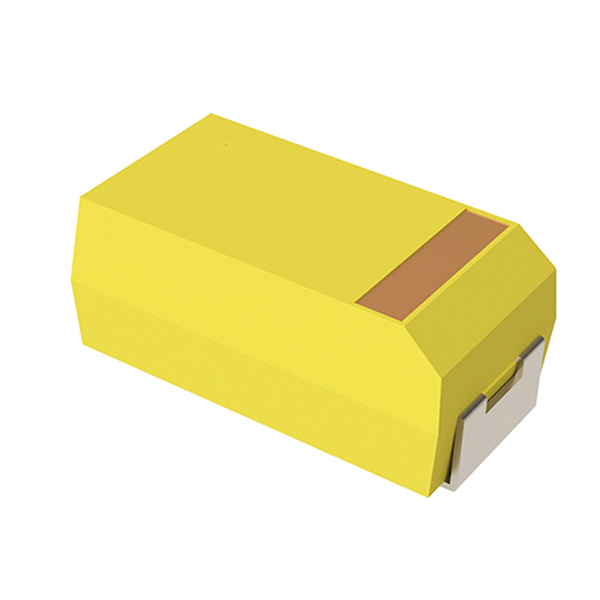

T498D155M050ATE2K8
1.5 µF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 2.8Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T498D155M050ATE2K8 |
|---|---|
| Capacitance | 1.5 µF |
| ESR (Equivalent Series Resistance) | 2.8 Ohm |
| Features | High Temperature, Automotive |
| Height - Seated (Max) | 0.122 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 50 V |
