Description
General part information

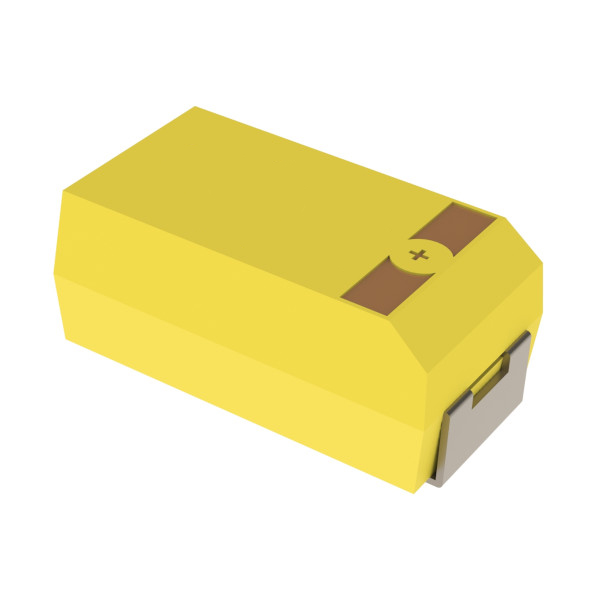

T493X226K035BH6110
22 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 700mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T493X226K035BH6110 |
|---|---|
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 700 mOhm |
| Failure Rate (Percent) | 0.1 % |
| Failure Rate Rating | B |
| Features | High Reliability |
| Height - Seated (Max) | 0.169 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | X |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Ratings | COTS |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
