General part information
Terminal Block Tools & Accessories D-MTK
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 3104123 | MTK Series |
|---|---|---|
| Color | Blue | Gray, Blue |
| Current - IEC | 16 A | 16 A |
| Disconnect Type | Switch, Knife | Switch, Knife |
| For Use With/Related Products | - | CLIPLINE MTK and MTKD Series |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 |
| Stripping Length | 7 mm | 7 mm |
| Terminal - Width [y] | 5.2 mm | 5.2 mm |
| Termination Style | Screw | Screw |
| Type | Disconnect | End Plate, Rail Type, Disconnect |
| Voltage - IEC | 400 V | 400 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² | 0.2 mm² |
Terminal Block Tools & Accessories D-MTK
| Part | Color | Type | For Use With/Related Products | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Levels | Number of Positions | Disconnect Type | Material - Insulation | Terminal - Width [y] | Current - IEC | Termination Style | Material Flammability Rating | Stripping Length | Voltage - IEC | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3101029 | Gray | End Plate, Rail Type | CLIPLINE MTK and MTKD Series | ||||||||||||||

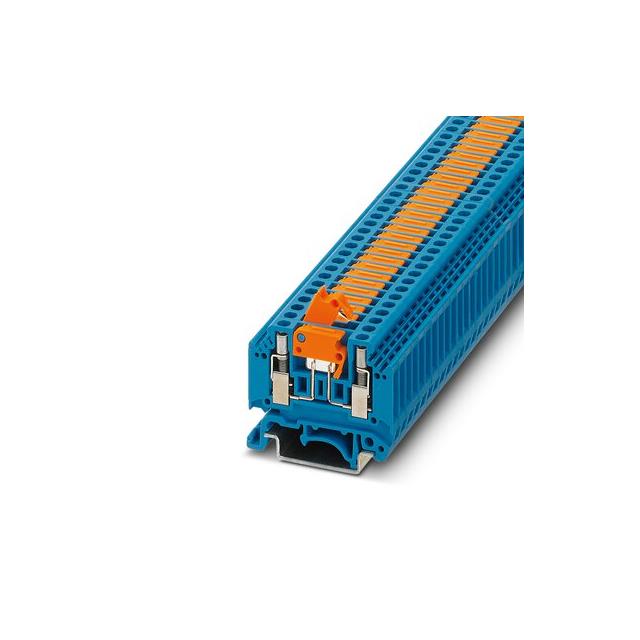

Phoenix Contact 3104123 | Blue | Disconnect | 24 AWG | 12 AWG | 1 | 2 | Knife, Switch | Nylon, Polyamide (PA) | 5.2 mm | 16 A | Screw | UL94 V-0 | 7 mm | 400 V | 0.2 mm² | 4 mm² |
