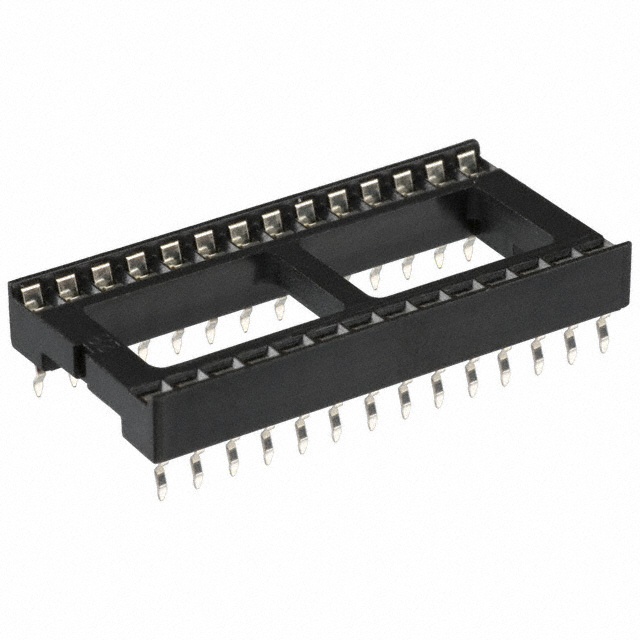

A 28-LC-TR

Active

Assmann WSW Components

CONN IC DIP SOCKET 28POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 28POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	A 28-LC-TR

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	DIP
Type	0.6 in
Type	15.24 mm

CONN IC DIP SOCKET 28POS TIN

Part	Termination	Mounting Type	Termination Post Length	Termination Post Length	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Resistance	Features	Contact Material - Post	Type	Type	Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Housing Material	Number of Positions or Pins (Grid)	Contact Finish - Post	Pitch - Post	Pitch - Post	Contact Material - Mating
Assmann WSW Components A 28-LC-TR	Solder	Through Hole	3.15 mm	0.124 in	85 °C	-55 °C	UL94 V-0	30 mOhm	Open Frame	Phosphor Bronze	DIP	0.6 in	15.24 mm	1 A	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	28	Tin	2.54 mm	0.1 in	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

28 (2 x 14) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
