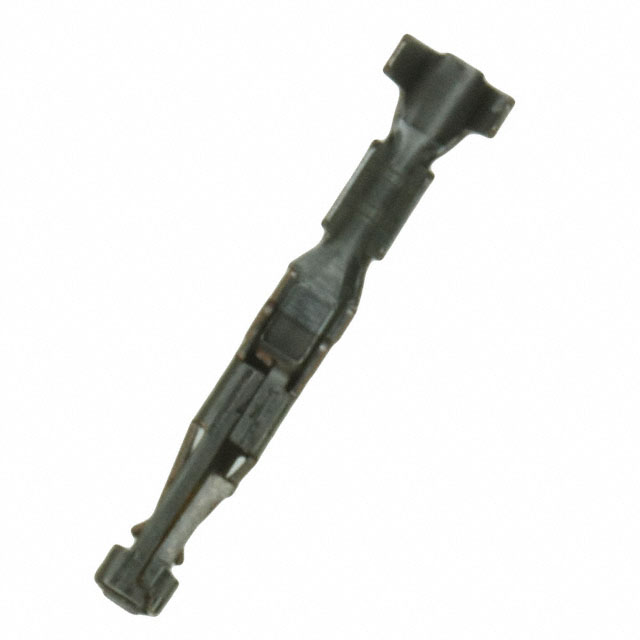

1-794611-1

Active

TE Connectivity AMP Connectors

CONN SOCKET 26-30AWG CRIMP GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 26-30AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 26-30AWG CRIMP GOLD

Part	Pin or Socket	Contact Finish	Type	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity AMP Connectors 794611-2	Socket	Gold	Stamped	Crimp	15 µin	0.38 µm	26 AWG	30 AWG
TE Connectivity AMP Connectors 1-794611-1	Socket	Gold	Stamped	Crimp	15 µin	0.38 µm	26 AWG	30 AWG
TE Connectivity AMP Connectors 794611-3	Socket	Gold	Stamped	Crimp	30 Áin	0.76 Ám	26 AWG	30 AWG
TE Connectivity AMP Connectors 794611-1	Socket	Tin	Stamped	Crimp			26 AWG	30 AWG
TE Connectivity AMP Connectors 1-794611-2	Socket	Gold	Stamped	Crimp	30 Áin	0.76 Ám	26 AWG	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 26-30 AWG Crimp Stamped
