HS2P2M20-BP

Active

Switchcraft Inc.

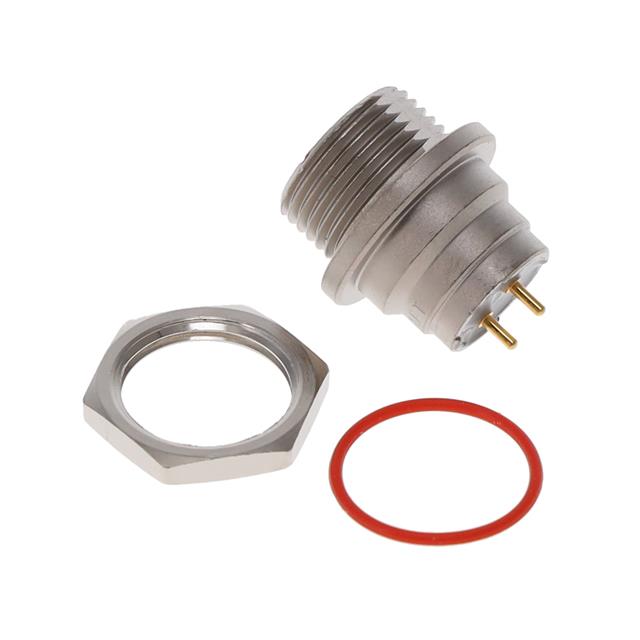

CONN RCPT MALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P2M20-BP	HS2P2M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 2POS GOLD SOLDER

Part	Shell Material	Applications	Number of Positions	Contact Finish - Mating	Voltage Rating	Ingress Protection	Color	Shell Finish	Mounting Type	Termination	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Fastening Type	Mounting Feature	Orientation	Shielding	Primary Material	Contact Material
Switchcraft Inc. HS2P2M20-BP	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	2	Gold	125 VAC	IP66, IP67, IP68	Silver	Electroless Nickel	Panel Mount, Through Hole	Solder	Liquid Crystal Polymer (LCP)	135 °C	-40 °C	Male Pins, Receptacle	Push-Pull	Bulkhead - Front Side Nut	Keyed	Shielded	Metal	Copper Alloy
Switchcraft Inc. HS2P2M20-BPE	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	2	Gold	125 VAC	IP66, IP67, IP68	Silver	Electroless Nickel	Panel Mount, Through Hole	Solder	Liquid Crystal Polymer (LCP)	135 °C	-40 °C	Male Pins, Receptacle	Push-Pull	Bulkhead - Front Side Nut	Keyed	Shielded	Metal	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
