SM170808-1
ActiveDB Unlimited

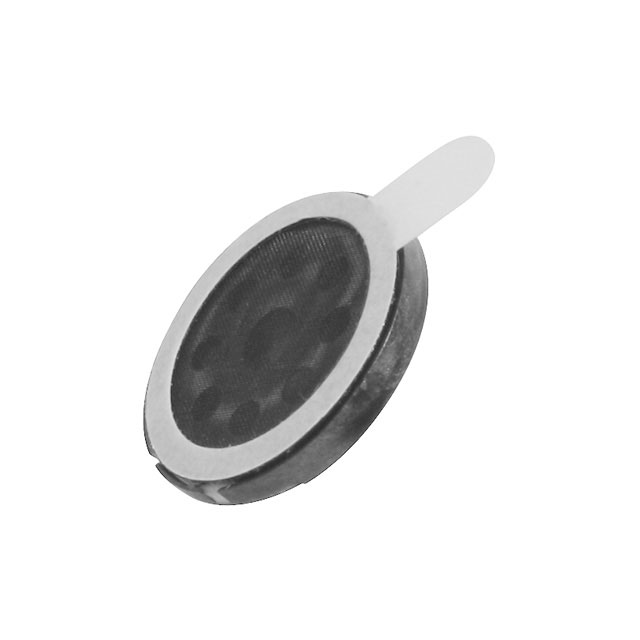

SPEAKERS 800HZ 90DBA 8OHM ROUND SOLDER PAD
SM170808-1
ActiveDB Unlimited
SPEAKERS 800HZ 90DBA 8OHM ROUND SOLDER PAD
Description
General part information
SM170808-1
8 Ohms General Purpose Speaker 800 mW 250 Hz ~ 10 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | SM170808-1 |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing (Length) | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 800 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 250 Hz |
| Height - Seated (Max) | 0.154 in |
| Impedance | 8 Ohm |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Power - Max | 1 VA |
| Power - Rated | 0.8 W |
| Shape | Round |
| Size / Dimension Diameter | 0.669 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
