A-BAT-BH-B0-EA-GSR1
ActiveAssmann WSW Components
BATTERY MULTIPLE SMD
A-BAT-BH-B0-EA-GSR1
ActiveAssmann WSW Components
BATTERY MULTIPLE SMD
Description
General part information
A-BAT-BH-B0-EA-GSR1

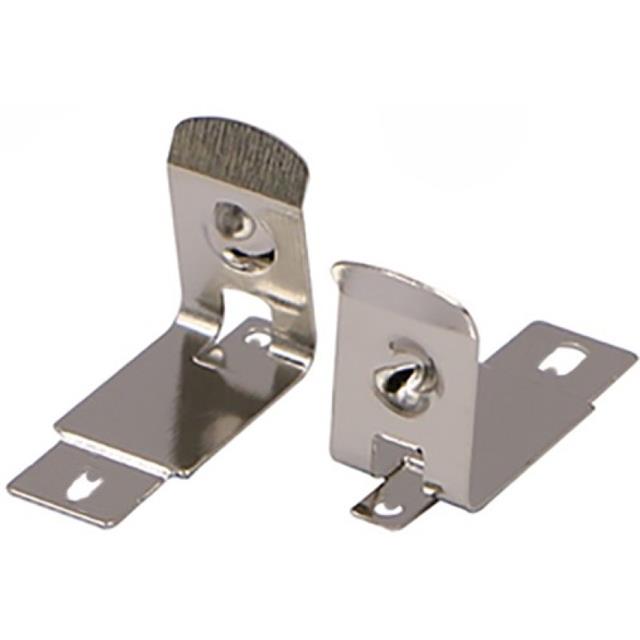

Battery Multiple Cell SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | A-BAT-BH-B0-EA-GSR1 |
|---|---|
| Battery Cell Size | Multiple, LR06, AA, LR03, AAA |
| Battery Type | Cylindrical |
| Function | Contact (Single) |
| Height Above Board | 0.386 in |
| Mounting Type | Through Hole, PCB |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
