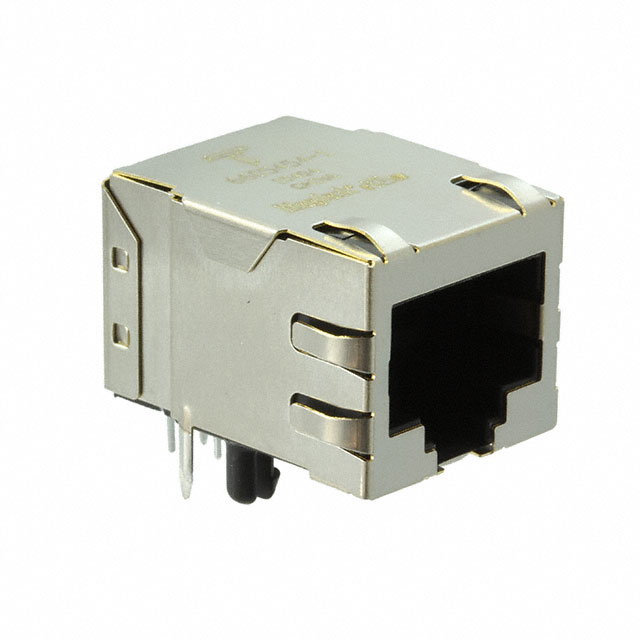

6605454-1
ActiveTRP Connector B.V.
CONN JACK 1PORT 100 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6605454-1 |
|---|---|
| Applications | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Height Above Board [z] | 14.1 mm |
| Height Above Board [z] | 0.555 in |
| Housing Material | Polyethylene Terephthalate (PET), Polyester |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 770 | $ 5.94 | |
Description
General part information
6605454-1
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
