D01-9902301
ActiveHarwin Inc.
SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
D01-9902301
ActiveHarwin Inc.
SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D01-9902301 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Features | Strip of 23 |
| Flange Diameter [diameter] | 1.45 mm |
| Flange Diameter [diameter] | 0.057 in |
| Insertion Force [Max] | 6 N |
| Insertion Force [Min] | 2 N |
| Length - Overall [x] | 0.142 in |
| Length - Overall [x] | 3.61 mm |
| Mounting Hole Diameter [Max] [diameter] | 1.09 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.043 in |
| Mounting Hole Diameter [Min] [diameter] | 0.039 in |
| Mounting Hole Diameter [Min] [diameter] | 0.99 mm |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth [z] | 3.15 mm |
| Socket Depth [z] | 0.124 " |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
D01-9902301

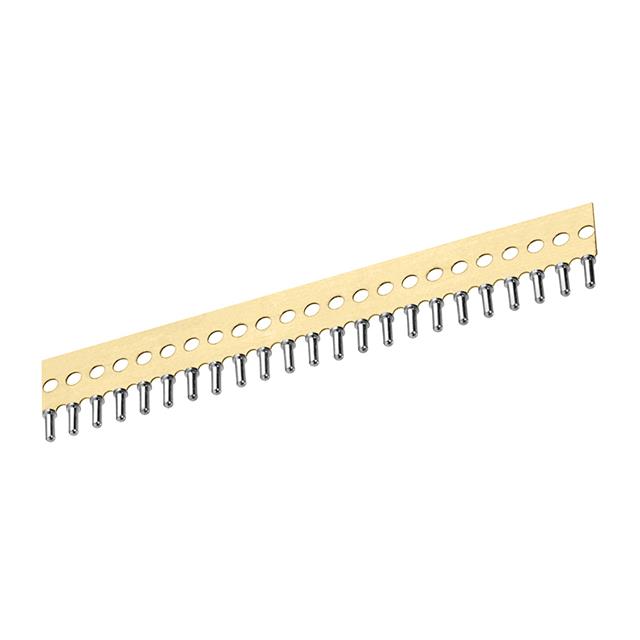

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder
