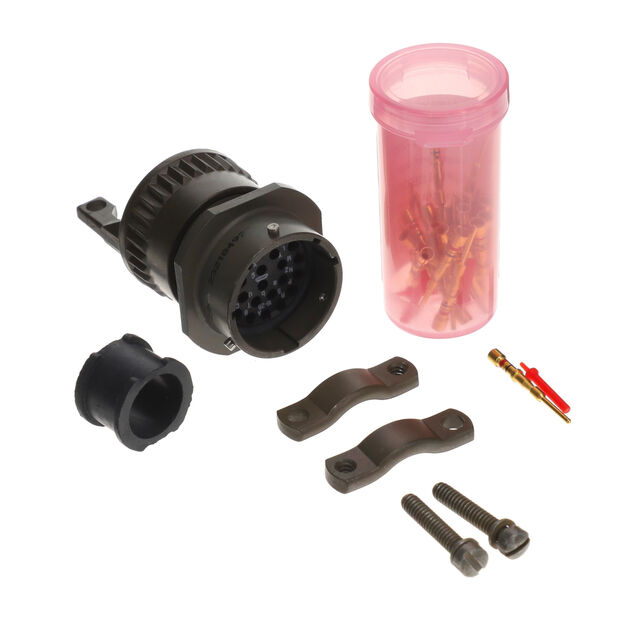

MS3121F16-26P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3121F16-26P | MS3121F16 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 26 | 26 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 26 | 26 |
| Shell Size - Insert [Min] | 16 | 16 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 118.42 | |
| 10 | $ 108.67 | |||
| 25 | $ 104.49 | |||
| 50 | $ 101.01 | |||
| 100 | $ 95.43 | |||
MS3121F16 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Applications | Ingress Protection | Mounting Type | Shell Finish | Connector Type | Fastening Type | Grade | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Contact Material | Qualification | Number of Positions | Current Rating (Amps) | Shielding | Shell Material | Color | Insert Material | Voltage Rating | Orientation | Contact Finish - Mating | Primary Material | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3121F16-26P | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Environment Resistant | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Male Pins, Receptacle | Bayonet Lock | Military | 16 | 26 | Copper Alloy | MIL-DTL-26482 Series I | 26 | 7.5 A | Unshielded | Aluminum | Olive Drab | Neoprene | 600 VAC | N | Gold | Metal | Crimp | Backshell, Cable Clamp | -55 °C | 125 °C |
Amphenol Industrial Operations MS3121F16-26S(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3121F16-8P | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3121F16-99S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3121F16-8S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3121F16-8S(LC) |
Description
General part information
MS3121F16 Series
26 Position Circular Connector Receptacle, Male Pins Crimp
