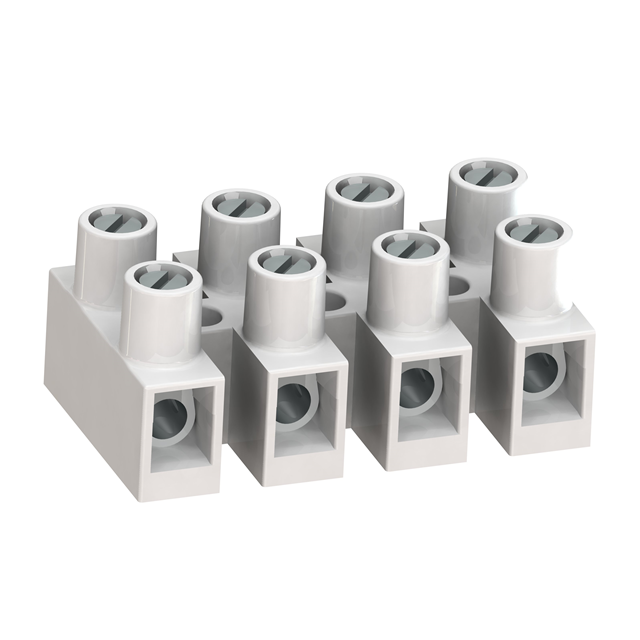

323-HDS/12

Active

WECO Electrical Connectors Inc.

TERM STRIP EURO; LOW PRO 10MM; D

Search across all available documentation for this part.

Active

WECO Electrical Connectors Inc.

TERM STRIP EURO; LOW PRO 10MM; D

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	323-HDS/12	323 Series

Barrier Type	Enclosed	Enclosed
Bottom Termination	Closed	Closed
Color	White	White
Current Rating (Amps)	30 A	30 A
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	12	3 - 12
Number of Rows	2	2
Number of Wire Entries	-	6
Operating Temperature	105 C	105 C
Pitch [x]	0.394 in	0.394 in
Pitch [x]	10 mm	10 mm
Terminal Block Type	Eurostyle Terminal Strip	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	10 AWG	10 AWG

TERM STRIP EURO; LOW PRO 10MM; D

Part	Material - Insulation	Color	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Voltage Rating	Terminal Block Type	Operating Temperature	Mounting Type	Barrier Type	Pitch [x]	Pitch [x]	Terminal Screw Material	Bottom Termination	Top Termination	Number of Circuits	Material Flammability Rating	Number of Wire Entries	Current Rating (Amps)	Terminal Screw Finish
WECO Electrical Connectors Inc. 323-HDS/03	Nylon, Polyamide (PA)	White	22 AWG	10 AWG	2	300 VDC	Eurostyle Terminal Strip	105 C	Chassis, Panel	Enclosed	0.394 in	10 mm	Steel	Closed	Screws	3	UL94 V-2	6	30 A	Zinc
WECO Electrical Connectors Inc. 323-HDS/12	Nylon, Polyamide (PA)	White	22 AWG	10 AWG	2	300 VDC	Eurostyle Terminal Strip	105 C	Chassis, Panel	Enclosed	0.394 in	10 mm	Steel	Closed	Screws	12	UL94 V-2		30 A	Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Circuit 0.394" (10.00mm) Eurostyle Terminal Strip Connector Screws
