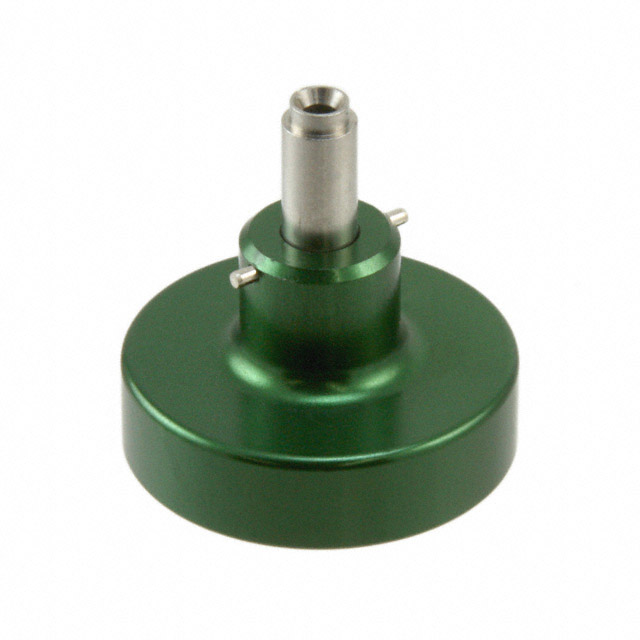

Specification	DCE.91.072.BVM

Compatible Tools	DPC.91.701.V, DPC.91.701.C
For Use With/Related Products	22-32 AWG, Contacts
Related Product Maximum Gauge	32 AWG
Related Product Minimum Gauge	22 AWG
Related Product Type	Contacts
Tool Type	Positioner

DCE.91 Series

Part	Tool Type	Related Product Type	For Use With/Related Products	Related Product Minimum Gauge	Related Product Maximum Gauge	Contact Area (Max)	Contact Area (Min)	Compatible Tools
LEMO DCE.91.132.CVM	Positioner	Circular Contacts	Circular Contacts	22 AWG	26 AWG	26 AWG	22 AWG	DPC.91.701.C DPC.91.701.V
LEMO DCE.91.073.BVM	Positioner	Contacts	22-32 AWG Contacts	22 AWG	32 AWG			DPC.91.701.C DPC.91.701.V
LEMO DCE.91.050.BVC	Positioner	Circular Contacts	Circular Contacts 28-32 AWG	28 AWG	32 AWG			DPC.91.701.C DPC.91.701.V
LEMO DCE.91.131.BVC	Positioner		18-24 AWG Contacts					DPC.91.701.C DPC.91.701.V
LEMO DCE.91.074.BVM	Positioner	Circular Contacts	Circular Contacts 28-32 AWG	28 AWG	32 AWG			DPC.91.701.C DPC.91.701.V
LEMO DCE.91.130.5MVC	Positioner	Circular Contacts	16-20 AWG Circular Contacts	16 AWG	20 AWG			DPC.91.701.V
LEMO DCE.91.133.BVC	Positioner		18-24 AWG Contacts					DPC.91.701.C DPC.91.701.V
LEMO DCE.91.303.BVCM	Turret Head		10-14 AWG Circular Contacts					DPC.91.701.V
LEMO DCE.91.162.BVCM	Turret Head		14-22 AWG Circular Contacts					DPC.91.701.V
LEMO DCE.91.073.BVC	Positioner	Contacts	22-32 AWG Contacts	22 AWG	32 AWG			DPC.91.701.C DPC.91.701.V
