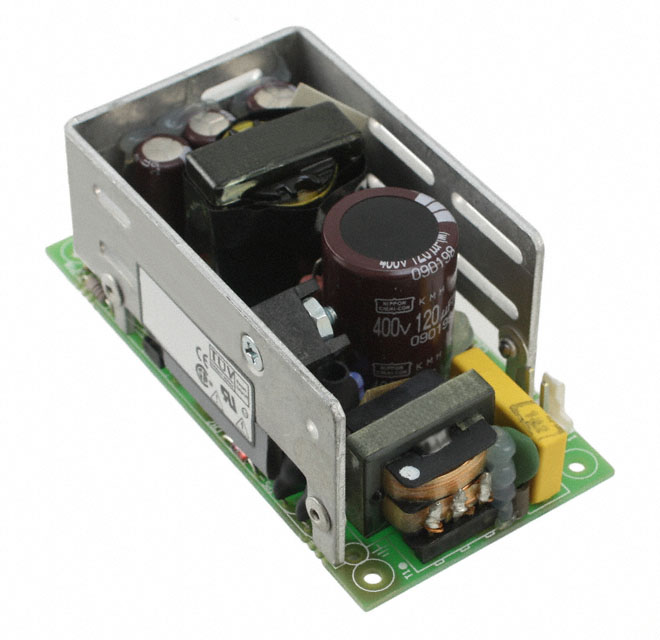

GPC41-5
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 5.1V 40W
GPC41-5
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 5.1V 40W
Description
General part information
GPC41-5
Open Frame AC DC Converters 1 Output 5.1V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | GPC41-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 6 A |
| Efficiency | 77 % |
| Features | Universal Input |
| Minimum Load Required | Yes |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 40 W |
| Size / Dimension Height | 1.5 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 5.1 V |
