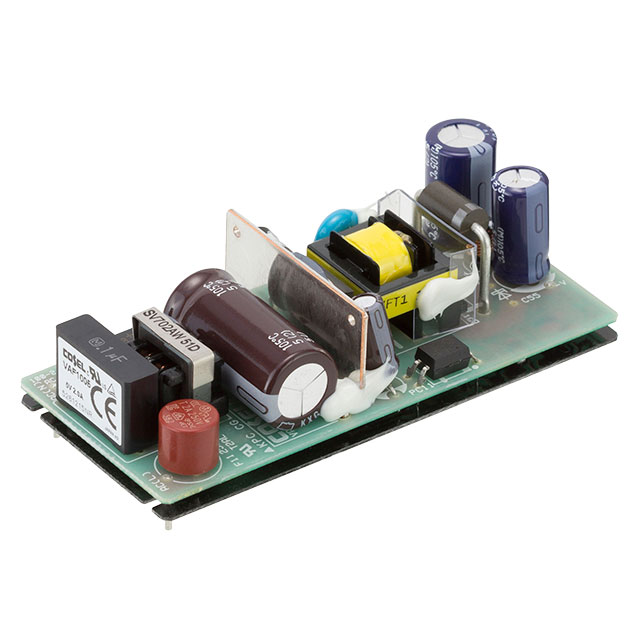

VAF1005
ObsoleteCosel USA, Inc.
AC/DC CONVERTER 5V 10W
VAF1005
ObsoleteCosel USA, Inc.
AC/DC CONVERTER 5V 10W
Description
General part information
VAF1005
Open Frame AC DC Converters 1 Output 5V 2A 85 ~ 264 VAC, 110 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VAF1005 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output (Max) | 2 A |
| Efficiency | 74 % |
| Line Regulation | 20 mV |
| Load Regulation (mV) | 40 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.83 in |
| Size / Dimension Length | 3.07 in |
| Size / Dimension Width | 1.42 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 110 V |
| Voltage - Output 1 | 5 V |
