HS2L4F20C

Active

Switchcraft Inc.

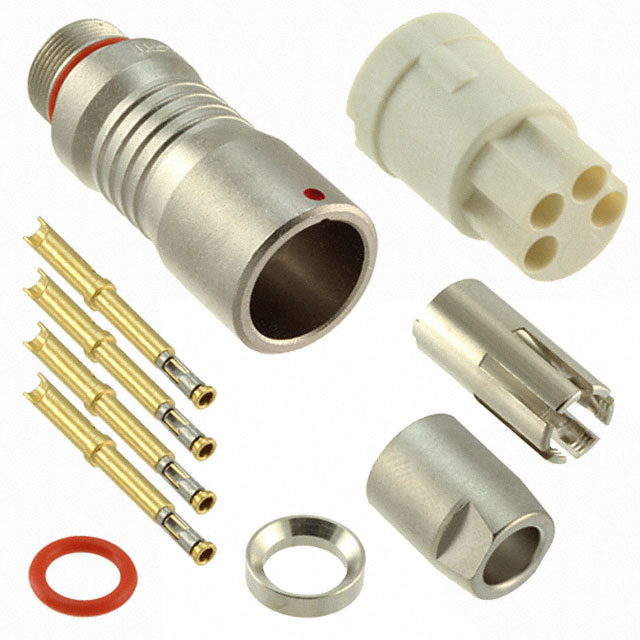

CIRCULAR PUSH PULL CONNECTORS CABLE-TO-CABLE 4 POS FEMALE CABLE SIZE C

Search across all available documentation for this part.

Active

Switchcraft Inc.

CIRCULAR PUSH PULL CONNECTORS CABLE-TO-CABLE 4 POS FEMALE CABLE SIZE C

Technical Specifications

Parameters and characteristics for this part

Specification	HS2L4F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

Circular Push Pull Connectors Cable-to-Cable 3Pos Female Cable Size A

Part	Shell Material	Applications	Primary Material	Mounting Type	Contact Finish - Mating	Ingress Protection	Termination	Contact Material	Orientation	Voltage Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shielding	Number of Positions	Insert Material	Shell Finish	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material Flammability Rating	Fastening Type
Switchcraft Inc. HS2L4F20C	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Free Hanging (In-Line)	Gold	IP66, IP67, IP68	Crimp, Solder Cup	Copper Alloy	Keyed	125 VAC	Silver	135 °C	-40 °C	Receptacle, Female Sockets	Shielded	4	Liquid Crystal Polymer (LCP)	Electroless Nickel	5.49 mm	4.57 mm	0.18 in	0.216 in	UL94 HF-1	Push-Pull
