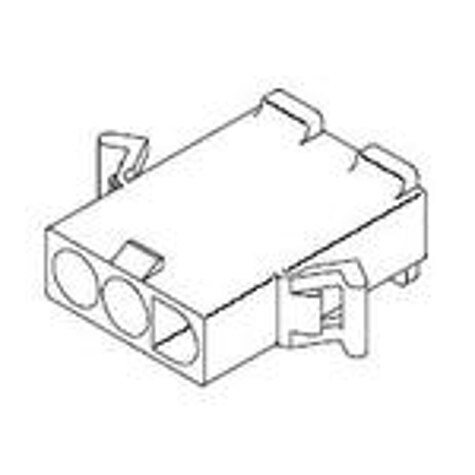

Specification	0019092049

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.264 in

001909 Series

Part	Color	Fastening Type	Insulation Material	Number of Positions	Contact Type	Number of Rows	Pitch	Mounting Type	Connector Type	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Note	Row Spacing	Features
Molex 0019092037	Natural	Locking Ramp	Nylon 6/6 Polyamide (PA66)	3	Female Male Male or Female	1	0.264 in	Panel Mount Snap-In	Plug	Crimp	-40 °C	105 °C	Contacts Not Included
Molex 0019092158	Natural	Locking Ramp	Nylon 6/6 Polyamide (PA66)	15	Female Male Male or Female	3	0.264 in	Panel Mount Snap-In	Plug	Crimp	-40 °C	105 °C	Contacts Not Included	0.264 in
Molex 0019092035	Natural		Nylon 6/6 Polyamide (PA66)	3	Female Male Male or Female	1	0.264 in	Free Hanging (In-Line)	Plug	Crimp	-40 °C	105 °C	Contacts Not Included		Mounting Flange
Molex 0019092029	Natural	Locking Ramp	Nylon 6/6 Polyamide (PA66)	2	Female Male Male or Female	1	0.264 in	Free Hanging (In-Line) Panel Mount	Plug	Crimp	-40 °C	105 °C	Contacts Not Included
Molex 0019092066	Natural	Locking Ramp	Nylon 6/6 Polyamide (PA66)	6	Female Male Male or Female	2	0.264 in	Panel Mount Snap-In	Plug	Crimp	-40 °C	105 °C	Contacts Not Included	0.264 in
Molex 0019091039	Natural	Latch Lock	Nylon 6/6 Polyamide (PA66)	3	Female Male Male or Female	1	0.264 in	Free Hanging (In-Line)	Receptacle	Crimp	-40 °C	105 °C	Contacts Not Included
Molex 0019091042	Natural	Locking Ramp	Nylon 6/6 Polyamide (PA66)	4	Female Male Male or Female	1	0.248 in	Panel Mount Snap-In	Receptacle	Crimp	-40 °C	105 °C	Contacts Not Included
Molex 0019091032	Natural	Locking Ramp		3	Female Male Male or Female	1	0.248 in	Free Hanging (In-Line)	Receptacle	Crimp			Contacts Not Included
Molex 0019092098	Natural	Locking Ramp	Nylon 6/6 Polyamide (PA66)	9	Female Male Male or Female	3	0.264 in	Panel Mount Snap-In	Plug	Crimp	-40 °C	105 °C	Contacts Not Included	0.264 in
Molex 0019092099	Natural	Locking Ramp	Nylon 6/6 Polyamide (PA66)	9	Female Male Male or Female	3	0.264 in	Free Hanging (In-Line)	Plug	Crimp	-40 °C	105 °C	Contacts Not Included	0.264 in
