SSP-3MB93S12G

Active

Lumex Opto/Components Inc.

LED .43" 3L BA9S 590NM SYLW WTR

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED .43" 3L BA9S 590NM SYLW WTR

Technical Specifications

Parameters and characteristics for this part

Specification	SSP-3MB93S12G

Applications	Indicator Lights, Incandescent Replacements
Base Type	Miniature Bayonet (BA9S)
Can Replace Lamps	Multiple Miniature Bayonet Lamps
Color	Yellow (x 3)
Millicandela Rating	13200 mcd
Size / Dimension [diameter]	11 mm
Size / Dimension [diameter]	0.433 "
Size / Dimension [z]	1.063 "
Size / Dimension [z]	27 mm
Voltage - Forward (Vf) (Typ)	12 V
Wavelength	590 nm

LED .43" 3L BA9S 590NM SYLW WTR

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength	Applications	Color	Base Type	Can Replace Lamps	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]
Lumex Opto/Components Inc. SSP-3MB93S12G	12 V	13200 mcd	590 nm	Incandescent Replacements, Indicator Lights	Yellow (x 3)	Miniature Bayonet (BA9S)	Multiple Miniature Bayonet Lamps	1.063 "	11 mm	27 mm	0.433 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

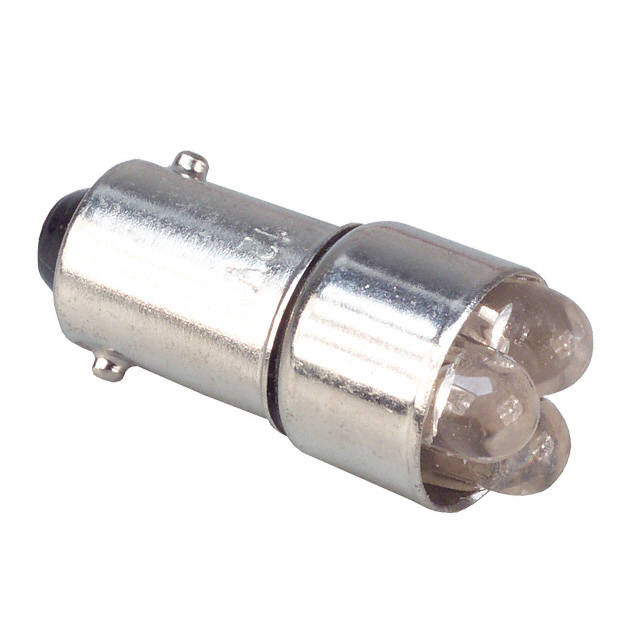

LED Lamp Replacement Yellow (x 3) Miniature Bayonet (BA9S) 12V 0.433" Dia x 1.063" H (11.00mm x 27.00mm)

Technical documentation and resources

No documents available
