TG-A20KF-285-190-4.0-2A
Activet-Global Technology

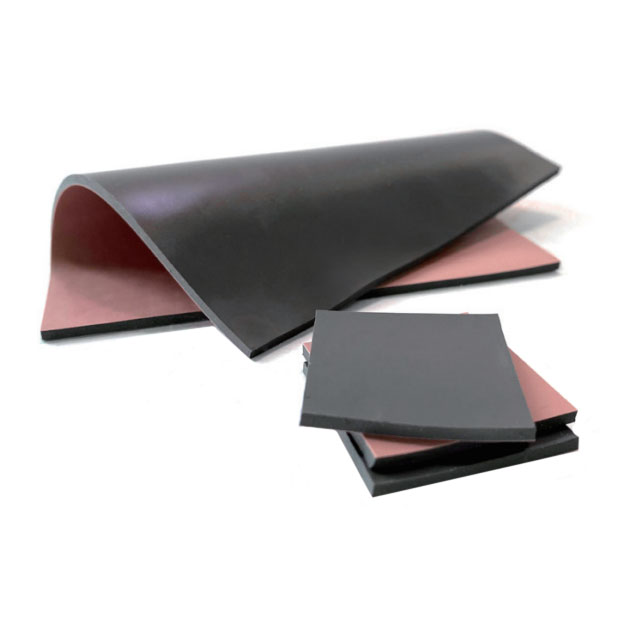

THERM PAD 285MMX190MM GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TG-A20KF-285-190-4.0-2A
Activet-Global Technology
THERM PAD 285MMX190MM GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TG-A20KF-285-190-4.0-2A |
|---|---|
| Adhesive | Tacky - One Side |
| Backing, Carrier | Fiberglass |
| Color | Gray |
| Material | Silicone |
| Outline [x] | 285 mm |
| Outline [y] | 190 mm |
| Shape | Rectangular |
| Thermal Conductivity | 1.8 W/m-K |
| Thickness | 0.157 in |
| Thickness | 4 mm |
| Usage | Multi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.49 | |
Description
General part information
TG-A20KF-285-190-4.0-2A
Thermal Pad Gray 285.00mm x 190.00mm Rectangular Tacky - One Side
