ATS-61270W-C2-R0
ActiveAdvanced Thermal Solutions Inc.

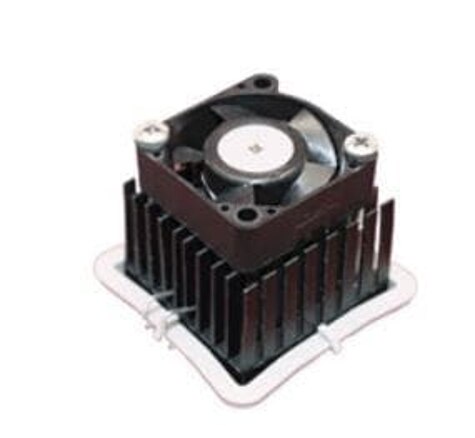

HEAT SINKS BGA FANSINK W/MAXIGRIP ATTACHMENT, T412, FAN SOLD SEPARATELY, 26.25X26.25X24.5MM
ATS-61270W-C2-R0
ActiveAdvanced Thermal Solutions Inc.
HEAT SINKS BGA FANSINK W/MAXIGRIP ATTACHMENT, T412, FAN SOLD SEPARATELY, 26.25X26.25X24.5MM
Description
General part information
ATS-61 Series
HEAT SINKS BGA FANSINK W/MAXIGRIP ATTACHMENT, T412, FAN SOLD SEPARATELY, 26.25X26.25X24.5MM
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-61270W-C2-R0 |
|---|---|
| Attachment Method | Clip, Thermal Material |
| Fin Height | 0.965 in |
| Length | 1.063 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Shape | Square, Pin Fins |
| Thermal Resistance | 1.9 °C/W |
| Type | Top Mount |
| Width | 1.063 in |
