Description
General part information
PE2CP000-20

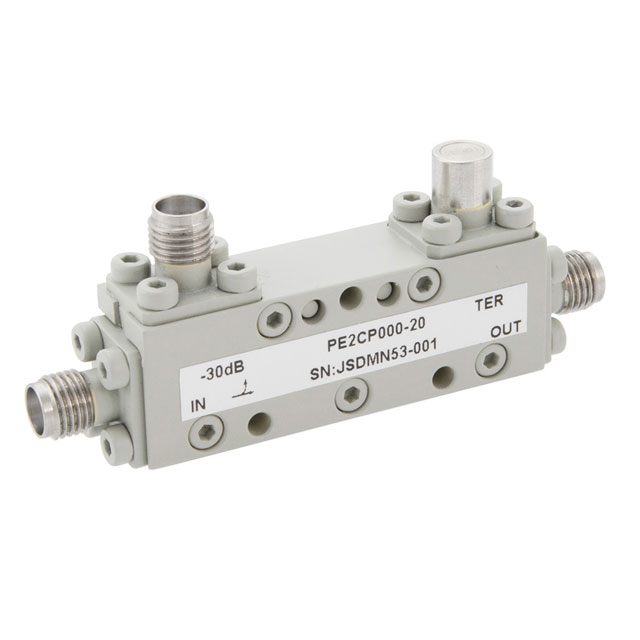

RF Directional Coupler General Purpose 2GHz ~ 18GHz 20 ± 1dB 50W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2CP000-20 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 2 GHz |
| Insertion Loss | 1 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Max | 50 VA |
