BVA304C
ActiveBeRex Corp
IC AMP 5G NR 30MHZ-5GHZ 24VFQFN
BVA304C
ActiveBeRex Corp
IC AMP 5G NR 30MHZ-5GHZ 24VFQFN
Description
General part information
BVA304C
RF Amplifier IC 5G NR, CDMA, LTE, W-CDMA 30MHz ~ 5GHz 24-VFQFN (4x4)
Technical Specifications
Parameters and characteristics for this part
| Specification | BVA304C |
|---|---|
| Current - Supply | 26 mA |
| Frequency (Max) | 5 GHz |
| Frequency (Min) | 30 MHz |
| Gain | 9 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 4 dB |
| P1dB | 18.8 dBm |

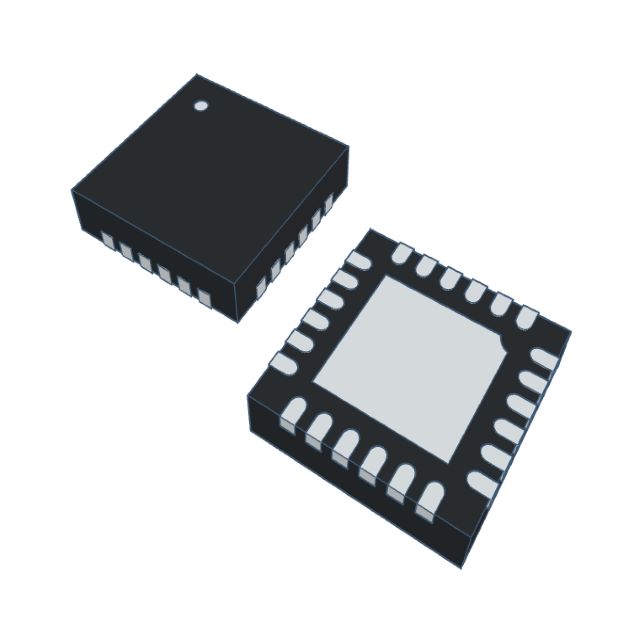

| Package / Case | 24-VQFN Exposed Pad |
| Package Length | 4 mm |
| Package Name | 24-VFQFN |
| Package Width | 4 mm |
| RF Type | 5G NR, CDMA, W-CDMA, LTE |
| Test Frequency | 3.5 GHz |
| Voltage - Supply | 3.3 V |
