UDA1380HN/N2,118

Active

NXP USA Inc.

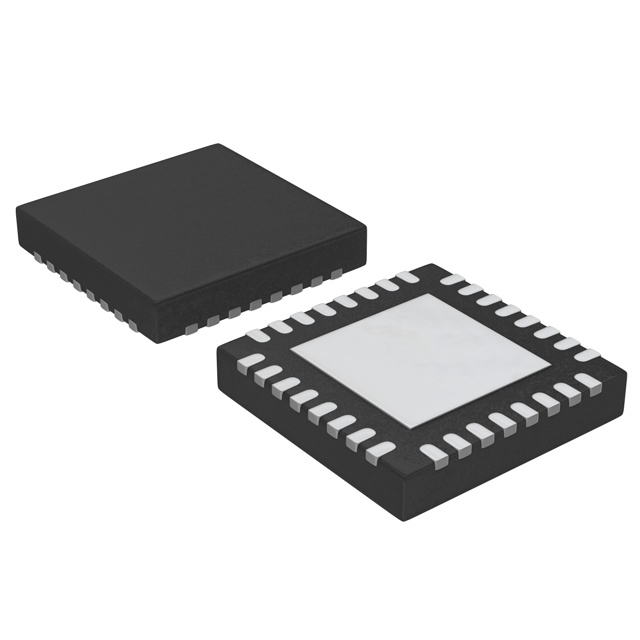

IC AUDIO CODEC MINIDISC 32HVQFN

Search across all available documentation for this part.

Active

NXP USA Inc.

IC AUDIO CODEC MINIDISC 32HVQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UDA1380HN/N2,118	UDA138 Series

Data Interface	Serial, I2C	Serial, I2C
Mounting Type	Surface Mount	Surface Mount
Number of ADCs / DACs [custom]	2	2
Number of ADCs / DACs [custom]	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	32-VFQFN Exposed Pad	32-VFQFN Exposed Pad, 32-TSSOP
Resolution (Bits)	24 b	24 b
S/N Ratio, ADCs / DACs (db) Typ [custom]	97 db	97 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	97 db	97 db
Sigma Delta	False	False
Supplier Device Package	32-HVQFN (5x5)	32-HVQFN (5x5), 32-TSSOP
Type	Stereo Audio	Stereo Audio
Voltage - Supply, Analog [Max]	3.6 V	3.6 V
Voltage - Supply, Analog [Min]	2.4 V	2.4 V
Voltage - Supply, Digital [Max]	3.6 V	3.6 V
Voltage - Supply, Digital [Min]	2.4 V	2.4 V

IC AUDIO CODEC MINIDISC 32HVQFN

Part	Resolution (Bits)	Supplier Device Package	Type	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Mounting Type	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Data Interface	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
NXP USA Inc. UDA1380HN/N2,118	24 b	32-HVQFN (5x5)	Stereo Audio	97 db	97 db	Surface Mount	3.6 V	2.4 V	2.4 V	3.6 V	2	2	I2C, Serial	32-VFQFN Exposed Pad	85 °C	-40 °C
NXP USA Inc. UDA1380TT/N2,512	24 b	32-TSSOP	Stereo Audio	97 db	97 db	Surface Mount	3.6 V	2.4 V	2.4 V	3.6 V	2	2	I2C, Serial	32-TSSOP	85 °C	-40 °C
NXP USA Inc. UDA1380TT/N2,518	24 b	32-TSSOP	Stereo Audio	97 db	97 db	Surface Mount	3.6 V	2.4 V	2.4 V	3.6 V	2	2	I2C, Serial	32-TSSOP	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stereo Audio Interface 24 b I2C, Serial 32-HVQFN (5x5)
