16880-4PG-522

Active

Conxall/Switchcraft

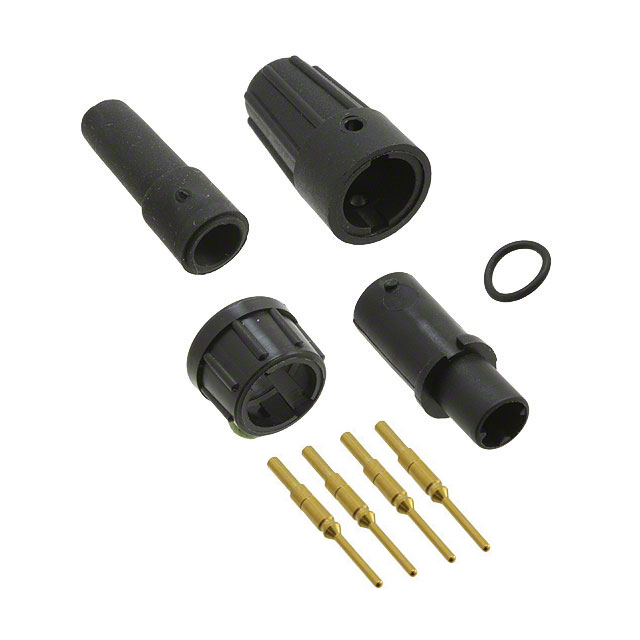

CONN PLUG MALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	16880-4PG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN PLUG MALE 4POS GOLD CRIMP

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material Flammability Rating	Backshell Material, Plating	Contact Finish - Mating	Color	Voltage Rating	Primary Material	Current Rating (Amps)	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector Type	Applications	Termination	Mounting Type	Number of Positions	Features	Shielding	Fastening Type	Orientation
Conxall/Switchcraft 16880-4PG-522	5.84 mm	0.22 in	5.59 mm	0.23 in	UL94 HB	Thermoplastic	Gold	Black	600 VAC	Plastic	6 A	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Copper Alloy	Male Pins, Plug	Data, Industrial, Instrumentation, Medical	Crimp	Free Hanging (In-Line)	4	Backshell	Unshielded	Bayonet Lock	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Crimp
