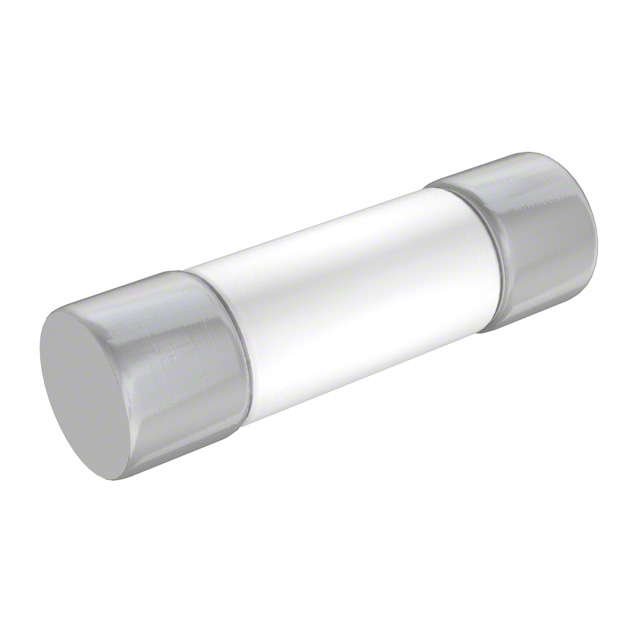

BK/GDA-4A
ActiveEaton - Electronics Division
FUSE CERAMIC 4A 250VAC 5X20MM
BK/GDA-4A
ActiveEaton - Electronics Division
FUSE CERAMIC 4A 250VAC 5X20MM
Description
General part information
BK/GDA-4A
4 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/GDA-4A |
|---|---|
| Approval Agency | SEMKO, CCC, IMQ, CSA, UL |
| Breaking Capacity | 1.5 kA |
| Current Rating | 4 A |
| DC Cold Resistance | 0.027 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 14 |
| Mounting Type | Requires Holder |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
