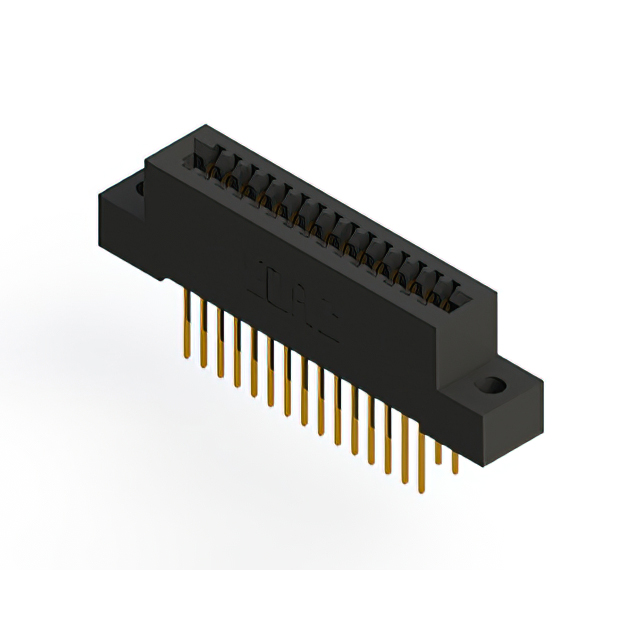

392-030-523-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
392-030-523-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-030-523-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
392-030 Series
...
| Part | Contact Type | Card Type | Mounting Type | Number of Rows | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Termination | Contact Material | Number of Positions/Bay/Row [custom] | Material - Insulation | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Pitch [x] | Pitch [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Through Hole | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Solder | Copper Alloy | 15 | Polyester Thermoplastic | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | |
EDAC Inc. | Cantilever | Non Specified - Single Edge | Through Hole | 1 | 30 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Single | -40 °C | 105 ░C | Female | Solder | Copper Alloy | 30 | Polyester Thermoplastic | Black | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | |||
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Through Hole | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Solder | Copper Alloy | 15 | Polyester Thermoplastic | Black | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | |||
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Through Hole | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Solder | Copper Alloy | 15 | Polyester Thermoplastic | Black | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in | |
EDAC Inc. | Cantilever | Non Specified - Single Edge | Through Hole | 1 | 30 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Single | -40 °C | 105 ░C | Female | Wire Wrap | Copper Alloy | 30 | Polyester Thermoplastic | Black | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | |||
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Through Hole Right Angle | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Solder Wire Wrap | Copper Alloy | 15 | Polyester Thermoplastic | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | |
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Through Hole | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Solder | Copper Alloy | 15 | Polyester Thermoplastic | Black | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | |||
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Through Hole | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Wire Wrap | Copper Alloy | 15 | Polyester Thermoplastic | Black | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | |||
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Board Edge Straddle Mount | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Solder Eyelet(s) | Copper Alloy | 15 | Polyester Thermoplastic | Black | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | Card Extender |
EDAC Inc. | Cantilever | Non Specified - Dual Edge | Through Hole | 2 | 30 | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Female | Wire Wrap | Copper Alloy | 15 | Polyester Thermoplastic | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
