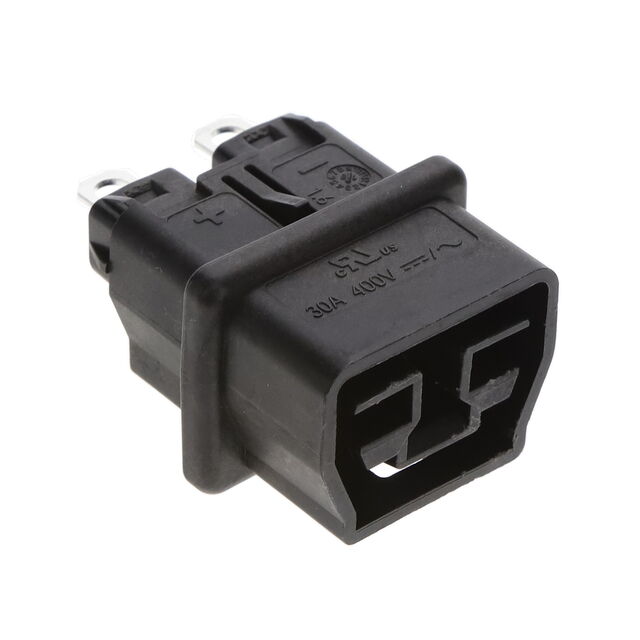

2007G4-BK
ActiveAnderson Power Products, Inc.
SAF-D-GRID 2007 SERIES ULTRA SHORT RECEPT. WITH CONTACTS 1.6MM PANEL BULK ROHS COMPLIANT: YES
2007G4-BK
ActiveAnderson Power Products, Inc.
SAF-D-GRID 2007 SERIES ULTRA SHORT RECEPT. WITH CONTACTS 1.6MM PANEL BULK ROHS COMPLIANT: YES
Description
General part information
2007G4-BK
Power Connector Receptacle Housing for Male Blades Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2007G4-BK |
|---|---|
| Approval Agency | cULus, cURus |
| Connector Type | Receptacle Housing for Male Blades |
| Current Rating | 30 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Panel Cutout Length | 19.89 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 26.8 mm |
| Panel Thickness | 0.063 in |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Voltage Rating (Type) | DC |
